Norsat International Inc.
Norsat 9000XCN-2-040985 Ka-Band Ext Ref LNB
Product Code:
9000XCN-2-040985
Condition:
New
Availability:
2 pcs
Weight:
0.27 KGS
Width:
4.22
(cm)
Height:
4.22
(cm)
Depth:
9.87
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Colour | FS33446 |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 20.20 - 21.20 GHz |
| LO Frequency 1 | 19.25 GHz |
| LO Type | EXT |
| Noise Figure Max | 1.6 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | 4 dB p-p max. |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| Isolator | No Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |

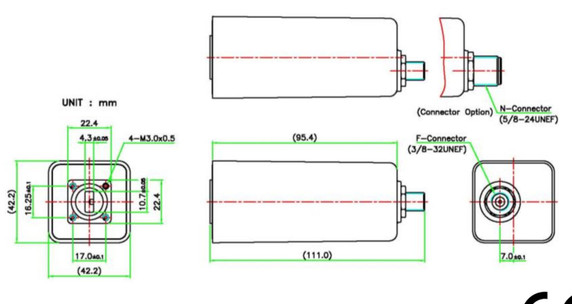

| PHYSICAL SPECIFICATIONS | |
| Product Height | 42.2 mm |
| Product Length | 98.7 mm |
| Product Weight | 0.27 kg |
| Product Width | 42.2 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.187 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.4675 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 3 years |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Colour | FS33446 |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 20.20 - 21.20 GHz |
| LO Frequency 1 | 19.25 GHz |
| LO Type | EXT |
| Noise Figure Max | 1.6 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | 4 dB p-p max. |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| Isolator | No Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 42.2 mm |
| Product Length | 98.7 mm |
| Product Weight | 0.27 kg |
| Product Width | 42.2 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.187 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.4675 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 3 years |
