Norsat International Inc.
Norsat 9000 Series 9000XC-2 Ka-Band Single-Band LNB
Product Code:
9000XC-2
Availability:
YES
Weight:
0.35 KGS
Width:
4.20
(cm)
Height:
4.20
(cm)
Depth:
11.10
(cm)
$1,144.00
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. KA-BAND PLL LNB; 20.2-21.2GHZ; LO: EXT REF; NF 1.8DB; F-CONN
| KEY SPECIFICATIONS | |
| Product Family | 9000 Series |
| Band | Ka-Band |
| LO Type | External |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference at 10MHz |
| Noise Figure | 1.5 dB |
| Input Frequency - Band 1 | Ka-Band: 20.20 - 21.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 19.25 GHz |
| Phase Noise @ 100Hz offset | -65 dBc/Hz |
| Phase Noise @ 1KHz offset | -75 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -100 dBc/Hz |
| Conversion Gain | 55 dBm |
| Gain Variation over operating band | 4 dBm p-p over 1000MHz |
| Gain Variation over temperature | 5 dBm max (-40°C to +60°C) |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 3 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| Current Drain | 160 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | F-75 Ohm |
| M & C SPECIFICATIONS | |
| LED Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Humidity | 0 - 95% |
| PHYSICAL SPECIFICATIONS | |

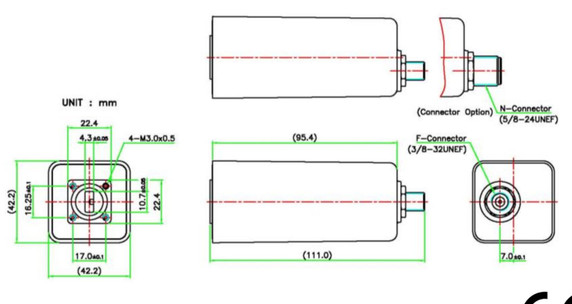

| Dimensions (L x W x H) | 111 x 42 x 42 mm |
| Weight | 350 g |
5 customers are viewing this product
Details
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. KA-BAND PLL LNB; 20.2-21.2GHZ; LO: EXT REF; NF 1.8DB; F-CONN
| KEY SPECIFICATIONS | |
| Product Family | 9000 Series |
| Band | Ka-Band |
| LO Type | External |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference at 10MHz |
| Noise Figure | 1.5 dB |
| Input Frequency - Band 1 | Ka-Band: 20.20 - 21.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 19.25 GHz |
| Phase Noise @ 100Hz offset | -65 dBc/Hz |
| Phase Noise @ 1KHz offset | -75 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -100 dBc/Hz |
| Conversion Gain | 55 dBm |
| Gain Variation over operating band | 4 dBm p-p over 1000MHz |
| Gain Variation over temperature | 5 dBm max (-40°C to +60°C) |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 3 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| Current Drain | 160 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | F-75 Ohm |
| M & C SPECIFICATIONS | |
| LED Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Humidity | 0 - 95% |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 111 x 42 x 42 mm |
| Weight | 350 g |
