Norsat International Inc.

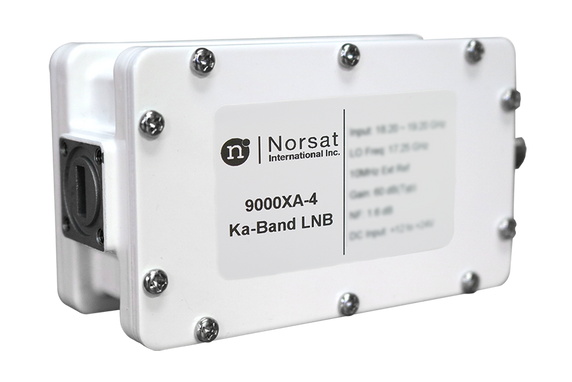

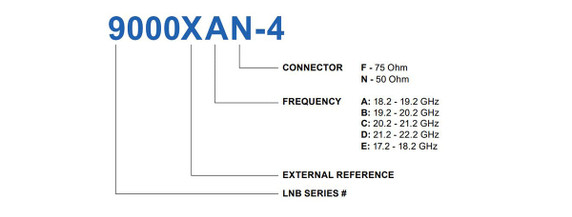

Norsat 9000XBF-4 9000X-4 Single-Band Ka-Band EXT REF LNB
Product Code:
9000XBF-4
Weight:
0.42 KGS
Width:
10.36
(cm)
Height:
4.50
(cm)
Depth:
6.00
(cm)
$722.00
| KEY SPECIFICATIONS | |
| band | Ka-Band |
| external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| input frequency band 1 | 19.20 - 20.20 GHz |
| LO frequency 1 | 17.25 GHz |
| LO stability | 10MHz Ext Ref |
| LO type | EXT |
| noise figure max | 1.6 dB |
| noise figure typ | 1.5 dB |
| number of onboard LOs | Single-Band |
| output frequency band 1 | 950 - 1950 MHz |
| Product Revision | A |
| RF SPECIFICATIONS | |
| conversion gain max | 65 dB |
| conversion gain min | 55 dB |
| conversion gain typ | 60 dB |
| Gain Flatness (over full band) | 4 dB p-p max. |
| image rejection | 40 dBc min. |
| input VSWR | 1.5 : 1 max. |
| output P1dB | + 5 dBm min. |
| output VSWR | 2.5 : 1 max. |
| phase noise 100kHz offset max | Depends on External Reference |
| phase noise 10kHz offset max | Depends on External Reference |
| phase noise 1kHz offset max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| current consumption | 400 mA max. |
| power requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF connector | F-Connector |
| isolator | - |
| RF input connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP rating | IP 67 |
| temperature operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |

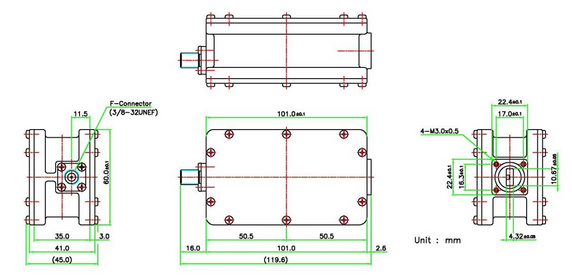

| product dimensions (LxWxH) | 103.6 x 60.0 x 45.0 mm |
| product weight | 0.42 kg |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| band | Ka-Band |
| external ref freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| input frequency band 1 | 19.20 - 20.20 GHz |
| LO frequency 1 | 17.25 GHz |
| LO stability | 10MHz Ext Ref |
| LO type | EXT |
| noise figure max | 1.6 dB |
| noise figure typ | 1.5 dB |
| number of onboard LOs | Single-Band |
| output frequency band 1 | 950 - 1950 MHz |
| Product Revision | A |
| RF SPECIFICATIONS | |
| conversion gain max | 65 dB |
| conversion gain min | 55 dB |
| conversion gain typ | 60 dB |
| Gain Flatness (over full band) | 4 dB p-p max. |
| image rejection | 40 dBc min. |
| input VSWR | 1.5 : 1 max. |
| output P1dB | + 5 dBm min. |
| output VSWR | 2.5 : 1 max. |
| phase noise 100kHz offset max | Depends on External Reference |
| phase noise 10kHz offset max | Depends on External Reference |
| phase noise 1kHz offset max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| current consumption | 400 mA max. |
| power requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF connector | F-Connector |
| isolator | - |
| RF input connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP rating | IP 67 |
| temperature operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| product dimensions (LxWxH) | 103.6 x 60.0 x 45.0 mm |
| product weight | 0.42 kg |
Download
| Download Name | |
| 9000X-4 Single-Band Ka-Band EXT REF LNB Data Sheet | |
