Norsat International Inc.
Norsat 9000XA-2-EOL 9000X-2 Ka-Band Ext Ref LNB - DEMO
Product Code:
9000XA-2-EOL
Condition:
New
Availability:
46 pcs
Weight:
0.27 KGS
Width:
4.20
(cm)
Height:
4.20
(cm)
Depth:
11.10
(cm)
$572.00
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 18.20 - 19.20 GHz |
| LO Frequency 1 | 17.25 GHz |
| LO Stability | 10 MHz Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 1.6 dB |
| Noise Figure Typ | 1.3 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | 4 dB p-p |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 3 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 0.1Khz Offset Max | Depends on External Reference |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| Isolator | No Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |

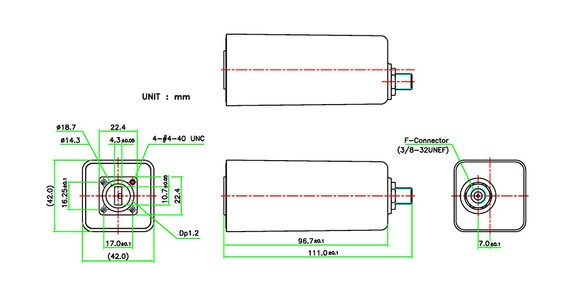

| PHYSICAL SPECIFICATIONS | |
| Product Height | 42 mm |
| Product Length | 111 mm |
| Product Weight | 0.27 kg |
| Product Width | 42 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Japan |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 130 mm x 50 mm x 50 mm |
| Unit Package Height | 50 mm |
| Unit Package Length | 130 mm |
| Unit Package Weight | 0.3 kg |
| Unit Package Width | 50 mm |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 18.20 - 19.20 GHz |
| LO Frequency 1 | 17.25 GHz |
| LO Stability | 10 MHz Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 1.6 dB |
| Noise Figure Typ | 1.3 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | 4 dB p-p |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 3 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 0.1Khz Offset Max | Depends on External Reference |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| Isolator | No Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 42 mm |
| Product Length | 111 mm |
| Product Weight | 0.27 kg |
| Product Width | 42 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Japan |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 130 mm x 50 mm x 50 mm |
| Unit Package Height | 50 mm |
| Unit Package Length | 130 mm |
| Unit Package Weight | 0.3 kg |
| Unit Package Width | 50 mm |
| Warranty | 1 year |
