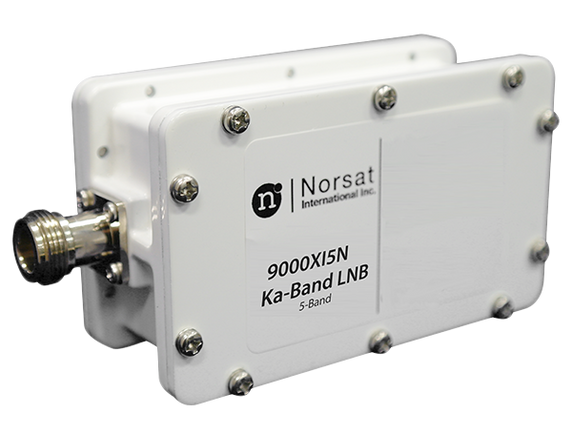

Norsat 9000 Series 9000X5F Ka-Band 5-Band LNB
Product Code:
9000X5F
Availability:
YES
Weight:
0.55 KGS
Width:
6.70
(cm)
Height:
3.70
(cm)
Depth:
13.40
(cm)
$4,101.00
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. LNB KA-PLL, FIVE BAND, 17.20-22.20GHZ, EXTREF, NF:2.7dB, F-CONN, NORSAT LOGO

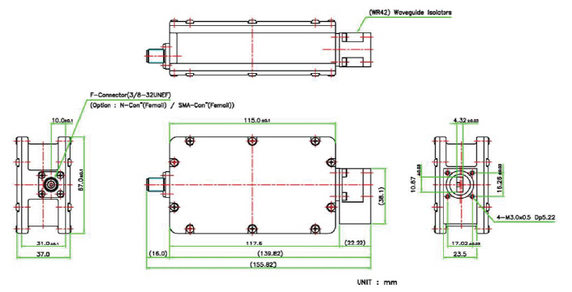

| KEY SPECIFICATIONS | |
| Product Family | 9000 Series |
| Band | Ka-Band |
| LO Type | External |
| # of onboard LOs | 5-band |
| LO Stability | Phase Locked to External Reference |
| Noise Figure | 2.6 dB |
| Input Frequency - Band 1 | Ka-Band: 17.20 - 18.20 GHz |
| Input Frequency - Band 2 | Ka-Band: 18.20 - 19.20 GHz |
| Input Frequency - Band 3 | Ka-Band: 19.20 - 20.20 GHz |
| Input Frequency - Band 4 | Ka-Band: 20.20 - 21.20 GHz |
| Input Frequency - Band 5 | Ka-Band: 21.20 - 22.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| Output Frequency 2 | L-Band: 950 - 1950 MHz |
| Output Frequency 3 | L-Band: 950 - 1950 MHz |
| Output Frequency 4 | L-Band: 950 - 1950 MHz |
| Output Frequency 5 | L-Band: 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 16.25 GHz |
| LO Frequency 2 | 17.25 GHz |
| LO Frequency 3 | 18.25 GHz |
| LO Frequency 4 | 19.25 GHz |
| LO Frequency 5 | 20.25 GHz |
| Control Signal 1 | 13 V |
| Control Signal 2 | 13V & 22 KHz tone |
| Control Signal 3 | 18 V |
| Control Signal 4 | 18V & 22 KHz tone |
| Control Signal 5 | 22 V |
| Phase Noise @ 1KHz offset | Depends on External Reference |
| Phase Noise @ 10KHz offset | Depends on External Reference |
| Phase Noise @ 100KHz offset | Depends on External Reference |
| Phase Noise @ 1MHz offset | Depends on External Reference |
| Conversion Gain | 60 dB typ |
| Gain Variation over operating band | ≤ 4 dB p-p |
| Input VSWR | 3.5 : 1 |
| Output VSWR | 2.2 : 1 |
| Output P1dB compression point | 10 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 12 - 24 V |
| Current Drain | 500 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 134 x 67 x 37 mm |
| Weight | 550 g |
