Norsat International Inc.

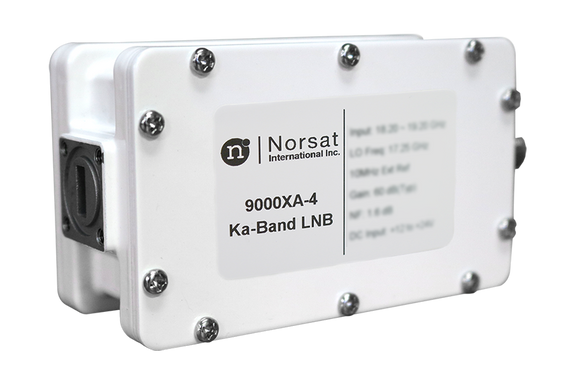

Norsat 9000 Series 9000X4ECF Ka-Band Quad-Band LNB

No reviews yet
Product Code: 9000X4ECF
Availability: YES
Weight: 0.55 KGS
Width: 6.70 (cm)
Height: 3.70 (cm)
Depth: 13.40 (cm)
$3,561.00

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. LNB, KA-PLL, QUAD,17.20-21.20GHZ, EXTREF, NF:2.0DB, F-CONN, NORSAT LOGO



KEY SPECIFICATIONS
Product Family 9000 Series
Band Ka-Band
LO Type External
# of onboard LOs Quad-band
LO Stability Phase Locked to External Reference
Noise Figure 2.0 dB
Input Frequency - Band 1 Ka-Band: 17.20 - 18.20 GHz
Input Frequency - Band 2 Ka-Band: 18.20 - 19.20 GHz
Input Frequency - Band 3 Ka-Band: 19.20 - 20.20 GHz
Input Frequency - Band 4 Ka-Band: 20.20 - 21.20 GHz
Output Frequency 1 L-Band: 950 - 1950 MHz
Output Frequency 2 L-Band: 950 - 1950 MHz
Output Frequency 3 L-Band: 950 - 1950 MHz
Output Frequency 4 L-Band: 950 - 1950 MHz

RF SPECIFICATIONS
LO Frequency 1 16.25 GHz
LO Frequency 2 17.25 GHz
LO Frequency 3 18.25 GHz
LO Frequency 4 19.25 GHz
Control Signal 1 13 V
Control Signal 2 13V /22 KHz tone
Control Signal 3 18 V
Control Signal 4 18V /22 KHz tone
Phase Noise @ 1KHz offset Depends on External Reference
Phase Noise @ 10KHz offset Depends on External Reference
Phase Noise @ 100KHz offset Depends on External Reference
Conversion Gain 62 dB typ
Input VSWR 3.5 : 1 max.
Output VSWR 2.0 : 1
Output P1dB compression point 10 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements 12 - 24 V
Current Drain 350 mA

INTERFACE SPECIFICATIONS
RF Input Connector WR-42 waveguide grooved
RF Output Connector F-75 Ohm

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C
Temperature - Storage -40 to +80°C

PHYSICAL SPECIFICATIONS

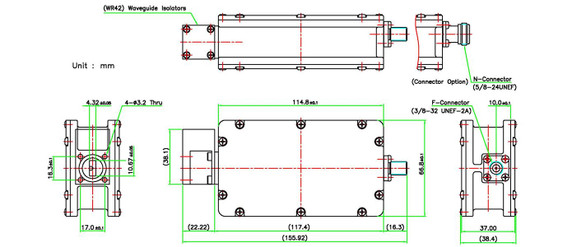

Dimensions (L x W x H) 134 x 67 x 37 mm
Weight 550 g
5 customers are viewing this product
  • Norton Secured
  • TRUSTe Verified
  • Authorized.net
  • Accredited Business
  • Verified by Visa
  • Mastercard SecureCode
Details

Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. LNB, KA-PLL, QUAD,17.20-21.20GHZ, EXTREF, NF:2.0DB, F-CONN, NORSAT LOGO



KEY SPECIFICATIONS
Product Family 9000 Series
Band Ka-Band
LO Type External
# of onboard LOs Quad-band
LO Stability Phase Locked to External Reference
Noise Figure 2.0 dB
Input Frequency - Band 1 Ka-Band: 17.20 - 18.20 GHz
Input Frequency - Band 2 Ka-Band: 18.20 - 19.20 GHz
Input Frequency - Band 3 Ka-Band: 19.20 - 20.20 GHz
Input Frequency - Band 4 Ka-Band: 20.20 - 21.20 GHz
Output Frequency 1 L-Band: 950 - 1950 MHz
Output Frequency 2 L-Band: 950 - 1950 MHz
Output Frequency 3 L-Band: 950 - 1950 MHz
Output Frequency 4 L-Band: 950 - 1950 MHz

RF SPECIFICATIONS
LO Frequency 1 16.25 GHz
LO Frequency 2 17.25 GHz
LO Frequency 3 18.25 GHz
LO Frequency 4 19.25 GHz
Control Signal 1 13 V
Control Signal 2 13V /22 KHz tone
Control Signal 3 18 V
Control Signal 4 18V /22 KHz tone
Phase Noise @ 1KHz offset Depends on External Reference
Phase Noise @ 10KHz offset Depends on External Reference
Phase Noise @ 100KHz offset Depends on External Reference
Conversion Gain 62 dB typ
Input VSWR 3.5 : 1 max.
Output VSWR 2.0 : 1
Output P1dB compression point 10 dBm

ELECTRICAL SPECIFICATIONS
Power Requirements 12 - 24 V
Current Drain 350 mA

INTERFACE SPECIFICATIONS
RF Input Connector WR-42 waveguide grooved
RF Output Connector F-75 Ohm

ENVIRONMENTAL SPECIFICATIONS
Temperature - Operational -40 to +60°C
Temperature - Storage -40 to +80°C

PHYSICAL SPECIFICATIONS
Dimensions (L x W x H) 134 x 67 x 37 mm
Weight 550 g
