Norsat International Inc.

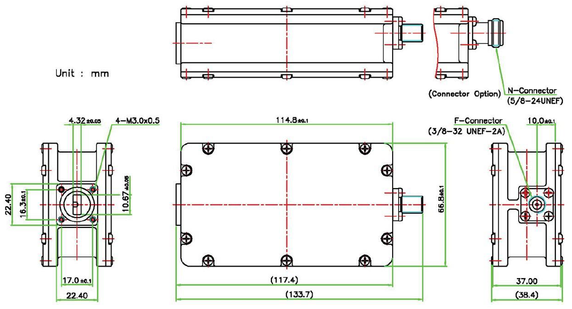

Norsat 9000UI-001 Ka-Band Quad-Band LNB
Product Code:
9000UI-001
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.55 KGS
Width:
6.70
(cm)
Height:
3.80
(cm)
Depth:
14.00
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 17.20 - 18.20 GHz |
| Input Frequency Band 2 | 18.20 - 19.20 GHz |
| Input Frequency Band 3 | 19.20 - 20.20 GHz |
| Input Frequency Band 4 | 20.20 - 21.20 GHz |
| LO Frequency 1 | 16.25 GHz |
| LO Frequency 2 | 17.25 GHz |
| LO Frequency 3 | 18.25 GHz |
| LO Frequency 4 | 19.25 GHz |
| Noise Figure | 2.0 dB max. |
| Number Of Onboard Los | Quad-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| Output Frequency Band 2 | 950 - 1950 MHz |
| Output Frequency Band 3 | 950 - 1950 MHz |
| Output Frequency Band 4 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 13V / 22kHz Tone |
| Control Signal 3 | 18V / No Tone |
| Control Signal 4 | 18V / 22kHz Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Input VSWR | 1.3 : 1 max. - with isolator |
| Output P1db | + 10 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| Tone Amplitude Voltage | 0.6 ± 0.2 V |
| Tone Duty Cycle | 50% ± 10% |
| Tone Frequency | 22 kHz ± 4 kHz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA Max |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 38 mm |
| Product Length | 140 mm |
| Product Weight | 0.550 kg |
| Product Width | 67 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 Year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 17.20 - 18.20 GHz |
| Input Frequency Band 2 | 18.20 - 19.20 GHz |
| Input Frequency Band 3 | 19.20 - 20.20 GHz |
| Input Frequency Band 4 | 20.20 - 21.20 GHz |
| LO Frequency 1 | 16.25 GHz |
| LO Frequency 2 | 17.25 GHz |
| LO Frequency 3 | 18.25 GHz |
| LO Frequency 4 | 19.25 GHz |
| Noise Figure | 2.0 dB max. |
| Number Of Onboard Los | Quad-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| Output Frequency Band 2 | 950 - 1950 MHz |
| Output Frequency Band 3 | 950 - 1950 MHz |
| Output Frequency Band 4 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 13V / 22kHz Tone |
| Control Signal 3 | 18V / No Tone |
| Control Signal 4 | 18V / 22kHz Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Input VSWR | 1.3 : 1 max. - with isolator |
| Output P1db | + 10 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| Tone Amplitude Voltage | 0.6 ± 0.2 V |
| Tone Duty Cycle | 50% ± 10% |
| Tone Frequency | 22 kHz ± 4 kHz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA Max |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 38 mm |
| Product Length | 140 mm |
| Product Weight | 0.550 kg |
| Product Width | 67 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 Year |
