Norsat International Inc.

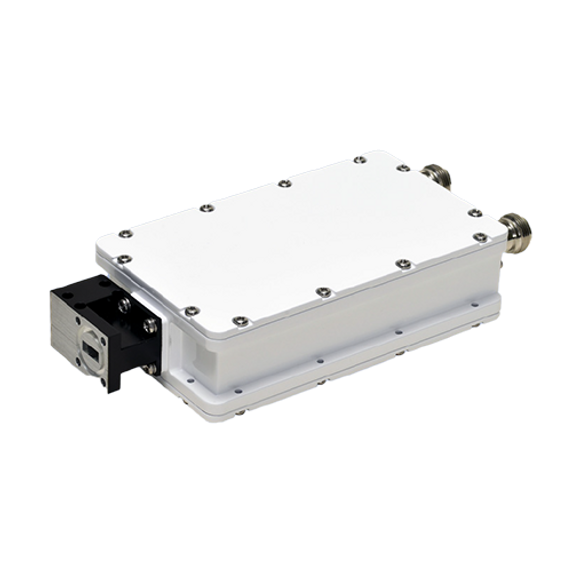

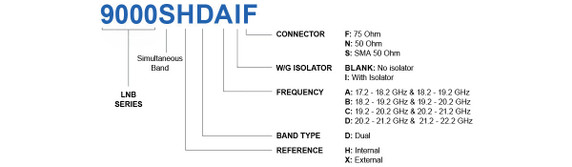

Norsat 9000SXDDIF 9000 Ka-Simultaneous Dual Band PLL EXT LNB
Product Code:
9000SXDDIF
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.75 KGS
Width:
7.84
(cm)
Height:
15.92
(cm)
Depth:
3.84
(cm)
$4,825.00
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Input Port | F Connector |
| External Ref Freq | 10MHz, -5 to +5dBm |
| Input Frequency Band 1 | 20.20 - 21.20 GHz |
| Input Frequency Band 2 | 21.20 - 22.20 GHz |
| LO Frequency 1 | 19.25 GHz |
| LO Frequency 2 | 20.25 GHz |
| LO Stability | Ext Ref |
| LO Type | PLL |
| Noise Figure Max | 1.7 dB |
| Number Of Onboard Los | Simultaneous Dual Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| Output Frequency Band 2 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (36Mhz) | 1 dB p-p |
| Gain Flatness (Over Full Band) | 4 dB p-p |
| Image Rejection | 40 dBc min. |
| Input VSWR | 1.5 : 1 max. |
| Output P1db | 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA max. (each band) |
| Power Requirements | +12 to +24V DC (each band) |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| Isolator | With Isolator |
| RF Input Connector | WR 42 |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 159.2 mm |
| Product Length | 38.4 mm |
| Product Weight | 0.75 kg |
| Product Width | 78.4 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.586 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.465 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 160 x 80 x 40 mm |
| Unit Package Height | 40 mm |
| Unit Package Length | 160 mm |
| Unit Package Weight | 0.75 kg |
| Unit Package Width | 80 mm |
| Warranty | 3 years |
