Norsat International Inc.
Norsat 9000SXDAS 9000 Ka-Simultaneous Dual Band PLL EXT LNB - 9000 Series
$4,486.27
Zoom the image with the mouse
Norsat International Inc.
Norsat 9000SXDCN 9000 Ka-Simultaneous Dual Band PLL EXT LNB - 9000 Series
Condition:
New
Weight:
0.75 KGS
Width:
15.92
(cm)
Height:
3.84
(cm)
Depth:
7.84
(cm)
$4,078.43 - $4,486.27
Norsat 9000 Ka-Simultaneous Dual Band PLL EXT LNB - 9000 Series
| KEY SPECIFICATIONS | |
| band | Ka-Band |
| external input port | N Connector |
| external ref freq | 10MHz, -5 to +5dBm |
| input frequency band 1 | 19.20 - 20.20 GHz |
| input frequency band 2 | 20.20 - 21.20 GHz |
| LO frequency 1 | 18.25 GHz |
| LO frequency 2 | 19.25 GHz |
| LO stability | External |
| noise figure | 1.8 dB max. |
| of onboard los | Dual Band |
| output frequency band 1 | 950 - 1950 MHz |
| W/G isolator | Optional |
| RF SPECIFICATIONS | |
| conversion gain | 60 dB Typ., 55dB min., 65 dB max. |
| Gain Flatness (Over Any 36MHz) | 1 dB p-p |
| Gain Flatness (over full band) | 4 dB p-p |
| image rejection | 40 dBc min. |
| input VSWR | 2.5 : 1 max. |
| output P1dB | 5 dBm min. |
| output VSWR | 2.2 : 1 max. |
| phase noise 100khz offset | -95 dBc/Hz |
| phase noise 10khz offset | -80 dBc/Hz |
| phase noise 1khz offset | -70 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| current drain | 350 mA max. |
| power connector | N Connector |
| power requirements | +12 to +24 VDC |
| INTERFACE SPECIFICATIONS | |
| RF input connector | WR 42 |
| ENVIRONMENTAL SPECIFICATIONS | |
| temperature operational | -40 to +60°C |
| Waterproofing | IP 67 |
| Weight | 750 g |
| PHYSICAL SPECIFICATIONS | |

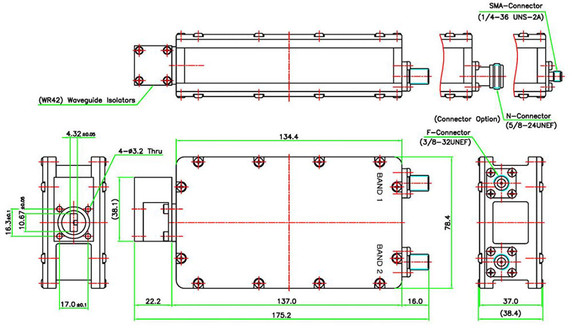

| dimensions (LxWxH) | 38.4 x 78.4 x 159.2 mm |
5 customers are viewing this product
Details
Norsat 9000 Ka-Simultaneous Dual Band PLL EXT LNB - 9000 Series
| KEY SPECIFICATIONS | |
| band | Ka-Band |
| external input port | N Connector |
| external ref freq | 10MHz, -5 to +5dBm |
| input frequency band 1 | 19.20 - 20.20 GHz |
| input frequency band 2 | 20.20 - 21.20 GHz |
| LO frequency 1 | 18.25 GHz |
| LO frequency 2 | 19.25 GHz |
| LO stability | External |
| noise figure | 1.8 dB max. |
| of onboard los | Dual Band |
| output frequency band 1 | 950 - 1950 MHz |
| W/G isolator | Optional |
| RF SPECIFICATIONS | |
| conversion gain | 60 dB Typ., 55dB min., 65 dB max. |
| Gain Flatness (Over Any 36MHz) | 1 dB p-p |
| Gain Flatness (over full band) | 4 dB p-p |
| image rejection | 40 dBc min. |
| input VSWR | 2.5 : 1 max. |
| output P1dB | 5 dBm min. |
| output VSWR | 2.2 : 1 max. |
| phase noise 100khz offset | -95 dBc/Hz |
| phase noise 10khz offset | -80 dBc/Hz |
| phase noise 1khz offset | -70 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| current drain | 350 mA max. |
| power connector | N Connector |
| power requirements | +12 to +24 VDC |
| INTERFACE SPECIFICATIONS | |
| RF input connector | WR 42 |
| ENVIRONMENTAL SPECIFICATIONS | |
| temperature operational | -40 to +60°C |
| Waterproofing | IP 67 |
| Weight | 750 g |
| PHYSICAL SPECIFICATIONS | |
| dimensions (LxWxH) | 38.4 x 78.4 x 159.2 mm |
