Norsat International Inc.

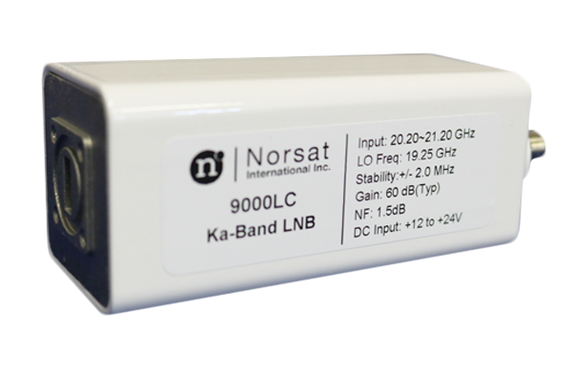

Norsat 9000LIDN 9000 Single-Band Ka-Band DRO LNB with Isolator
Product Code:
9000LIDN
Weight:
0.30 KGS
Width:
11.10
(cm)
Height:
4.20
(cm)
Depth:
4.20
(cm)
$644.00
| KEY SPECIFICATIONS | |
| band | Ka-Band |
| input frequency band 1 | 21.20 - 22.20 GHz |
| LO frequency 1 | 17.25 GHz |
| LO stability | ±2 kHz |
| LO type | DRO |
| noise figure max | 1.2 dB |
| noise figure typ | 1.5 dB |
| number of onboard LOs | Single-Band |
| output frequency band 1 | 950 - 1950 MHz |
| Product Revision | A |
| RF SPECIFICATIONS | |
| conversion gain max | 65 dB |
| conversion gain min | 55 dB |
| conversion gain typ | 60 dB |
| Gain Flatness (over full band) | ≤ 5 dB p-p max. |
| gain flatness ripple | ≤ 5 dB p-p |
| input VSWR | 2.5 : 1 max. |
| output P1dB | + 3 dBm min. |
| output VSWR | 2.5 : 1 max. |
| phase noise 100kHz offset max | -95 dBc/Hz |
| phase noise 10kHz offset max | -75 dBc/Hz |
| phase noise 1kHz offset max | -60 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| power requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF connector | N-Connector |
| isolator | With Isolator |
| RF input connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| temperature operational | -30 to +60°C |
| temperature storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| product dimensions (LxWxH) | 111 x 42 x 42 mm |
| product weight | 0.3 kg |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| band | Ka-Band |
| input frequency band 1 | 21.20 - 22.20 GHz |
| LO frequency 1 | 17.25 GHz |
| LO stability | ±2 kHz |
| LO type | DRO |
| noise figure max | 1.2 dB |
| noise figure typ | 1.5 dB |
| number of onboard LOs | Single-Band |
| output frequency band 1 | 950 - 1950 MHz |
| Product Revision | A |
| RF SPECIFICATIONS | |
| conversion gain max | 65 dB |
| conversion gain min | 55 dB |
| conversion gain typ | 60 dB |
| Gain Flatness (over full band) | ≤ 5 dB p-p max. |
| gain flatness ripple | ≤ 5 dB p-p |
| input VSWR | 2.5 : 1 max. |
| output P1dB | + 3 dBm min. |
| output VSWR | 2.5 : 1 max. |
| phase noise 100kHz offset max | -95 dBc/Hz |
| phase noise 10kHz offset max | -75 dBc/Hz |
| phase noise 1kHz offset max | -60 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| power requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF connector | N-Connector |
| isolator | With Isolator |
| RF input connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| temperature operational | -30 to +60°C |
| temperature storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| product dimensions (LxWxH) | 111 x 42 x 42 mm |
| product weight | 0.3 kg |
Download
| Download Name | |
| 9000LIAF 9000 Single-Band Ka-Band DRO LNB Data Sheet | |
