Norsat International Inc.

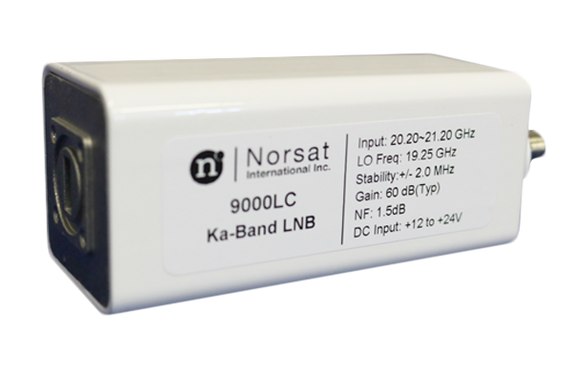

Norsat 9000LIAF 9000 Single Band Ka-Band DRO LNB

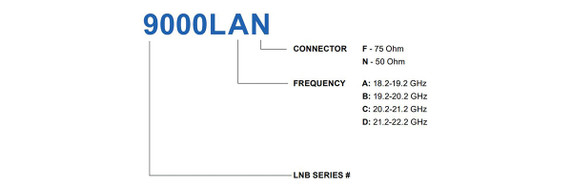

Product Code:
9000LIAF
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.30 KGS
Width:
4.20
(cm)
Height:
4.20
(cm)
Depth:
11.10
(cm)
$643.00
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000L Series.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 18.20 - 19.20 GHz |
| LO Frequency 1 | 17.25 GHz |
| LO Stability | ±2 MHz |
| LO Type | DRO |
| Noise Figure Max | 1.2 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p max. |
| Gain Flatness Ripple | ≤ 5 dB p-p |
| Input VSWR | 1.5 : 1 max. |
| Output P1db | + 3 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| Isolator | With Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -30°C to +60°C |
| Temperature Storage | -40 to +80°C |

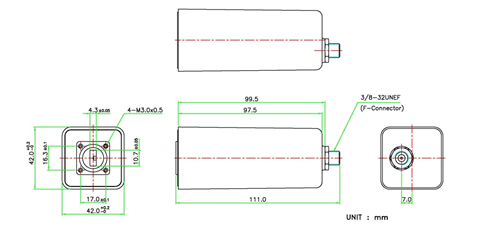

| PHYSICAL SPECIFICATIONS | |
| Product Height | 42 mm |
| Product Length | 111 mm |
| Product Weight | 0.3 kg |
| Product Width | 42 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.186 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.465 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 50 mm |
| Package Length Case 1 | 140 mm |
| Package Width Case 1 | 50 mm |
| Unit Package Dimensions | 140 x 50 x 50 mm |
| Unit Package Weight | 0.3 kg |
| Warranty | 3 years |
5 customers are viewing this product
Details
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000L Series.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 18.20 - 19.20 GHz |
| LO Frequency 1 | 17.25 GHz |
| LO Stability | ±2 MHz |
| LO Type | DRO |
| Noise Figure Max | 1.2 dB |
| Noise Figure Typ | 1.5 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p max. |
| Gain Flatness Ripple | ≤ 5 dB p-p |
| Input VSWR | 1.5 : 1 max. |
| Output P1db | + 3 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| Isolator | With Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -30°C to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 42 mm |
| Product Length | 111 mm |
| Product Weight | 0.3 kg |
| Product Width | 42 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.186 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.465 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 50 mm |
| Package Length Case 1 | 140 mm |
| Package Width Case 1 | 50 mm |
| Unit Package Dimensions | 140 x 50 x 50 mm |
| Unit Package Weight | 0.3 kg |
| Warranty | 3 years |
Download
| Download Name | |
| 9000LIAF 9000 Single-Band Ka-Band DRO LNB Data Sheet | |
