Norsat International Inc.

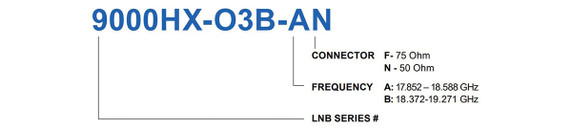

Norsat 9000HX-O3B-BN-EOL Auto-Reference Ka-Band PLL LNB - DEMO
Auto-Reference: Automatically switch to internal PLL when external reference is not available.
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000HX-O3B Series.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 10 to 0 dBm |
| Input Frequency Band 1 | 18.372 - 19.271 GHz |
| LO Frequency 1 | 17.40 GHz |
| LO Stability | ±25 KHz in PLL |
| LO Type | Auto-reference |
| Noise Figure Max | 1.6 dB |
| Noise Figure Typ | 1.3 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 972 - 1871 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 58 dB |
| Gain Flatness (Over Full Band) | ≤ 3 dB p-p max. |
| Input VSWR | 2.0 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 300 mA max. |
| Power Requirements | +11 to +26V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +80°C |

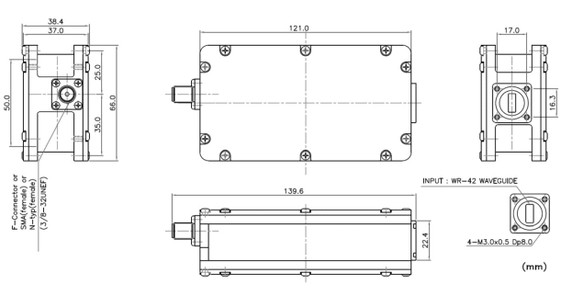

| PHYSICAL SPECIFICATIONS | |
| Product Height | 39 mm |
| Product Length | 140 mm |
| Product Weight | 0.5 kg |
| Product Width | 66 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.312 kg |
| Aluminium Total Value | $ 0.78 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 70 mm |
| Package Length Case 1 | 190 mm |
| Package Width Case 1 | 100 mm |
| Unit Package Dimensions | 190 mm x 100 mm x 70 mm |
| Unit Package Weight | 0.5 kg |
| Warranty | 1 year |
