Norsat International Inc.

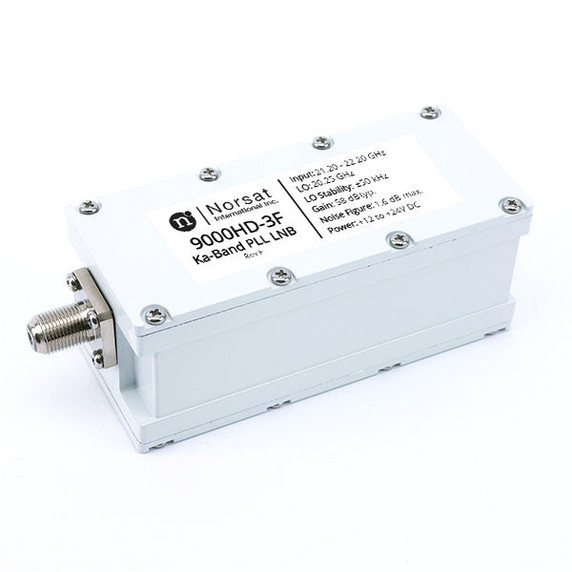

Norsat 9000HD-3F 9000 Single Band Ka-Band PLL LNB
Product Code:
9000HD-3F
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.30 KGS
Width:
4.25
(cm)
Height:
4.00
(cm)
Depth:
10.14
(cm)
$1,012.00
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs. 9000HD-3 Series.
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 21.20 - 22.20 GHz |
| LO Frequency 1 | 20.25 GHz |
| LO Stability | ±50 kHz |
| LO Type | PLL |
| Noise Figure Typ | 1.6 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Typ | 58 dB |
| Gain Flatness (Over Full Band) | +/- 2 dB max |
| Image Rejection | 40 dBc min. |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -60 dBc/Hz |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 300 mA |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-42 |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 40 mm |
| Product Length | 101.4 mm |
| Product Weight | 0.3 kg |
| Product Width | 42.5 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.19 kg |
| Aluminium Total Value | $ 0.475 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 3 years |
