Norsat International Inc.
Norsat 9000-100123 Five-Band Ka-Band Internal Ref LNB
Product Code:
9000-100123
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.56 KGS
Width:
6.68
(cm)
Height:
3.84
(cm)
Depth:
13.96
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 17.20 - 18.20 GHz |
| Input Frequency Band 2 | 18.20 - 19.20 GHz |
| Input Frequency Band 3 | 19.20 - 20.20 GHz |
| Input Frequency Band 4 | 20.20 - 21.20 GHz |
| Input Frequency Band 5 | 21.20 - 22.20 GHz |
| LO Frequency 1 | 16.25 GHz |
| LO Frequency 2 | 17.25 GHz |
| LO Frequency 3 | 18.25 GHz |
| LO Frequency 4 | 19.25 GHz |
| LO Frequency 5 | 20.25 GHz |
| LO Stability | ±10 kHz max. |
| Noise Figure Max | 2.0 dB (with W/G isolator) |
| Number Of Onboard Los | Five-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| Output Frequency Band 2 | 950 - 1950 MHz |
| Output Frequency Band 3 | 950 - 1950 MHz |
| Output Frequency Band 4 | 950 - 1950 MHz |
| Output Frequency Band 5 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | 4 dB p-p max. |
| Gain Ripple At 36Mhz | 1 dB p-p max. |
| Image Rejection Band 1 | 40 dBc min. |
| Image Rejection Band 2 | 25 dBc min. |
| Image Rejection Band 3 | 0 dBc min. |
| Image Rejection Band 4 | 0 dBc min. |
| Image Rejection Band 5 | 0 dBc min. |
| Input VSWR | 1.5 : 1 max. (with W/G isolator) |
| Output P1db | + 10 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 400 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | SMA-Connector |
| Isolator | With Waveguide Isolator |
| RF Input Connector | WR-42 waveguide grooved |
| M AND C SPECIFICATIONS | |

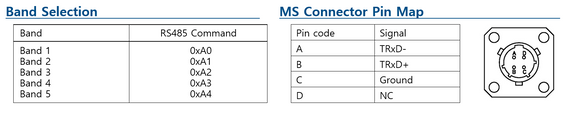

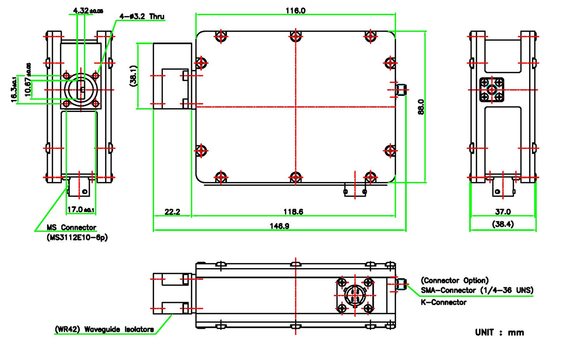

| M And C Connector | RS-485 |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 38.4 mm |
| Product Length | 139.6 mm |
| Product Weight | 0.56 kg |
| Product Width | 66.8 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.317 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.7925 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
