Norsat International Inc.
Norsat 9000-100113 9000 Tri-Band Ka-Band EXT REF LNB
Product Code:
9000-100113
Condition:
New
Availability:
Available
Weight:
1.10 KGS
Width:
10.80
(cm)
Height:
3.84
(cm)
Depth:
13.86
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 17.70 - 18.20 GHz |
| Input Frequency Band 2 | 18.20 - 19.20 GHz |
| Input Frequency Band 3 | 19.20 - 20.20 GHz |
| LO Frequency 1 | 16.75 GHz |
| LO Frequency 2 | 17.25 GHz |
| LO Frequency 3 | 18.25 GHz |
| LO Type | PLL |
| Number Of Onboard Los | Triple-Band |
| Output Frequency Band 1 | 950 - 1450 MHz |
| Output Frequency Band 2 | 950 - 1950 MHz |
| Output Frequency Band 3 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p max. |
| Image Rejection | 40 dBc min. |
| Input VSWR | 1.5 : 1 max. with w/G isolator |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| Spurious | -60 dBc @ 10 dBm (in band) ; -50 dBc @ 10 dBm (out of band) |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 320 mA |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +80°C |

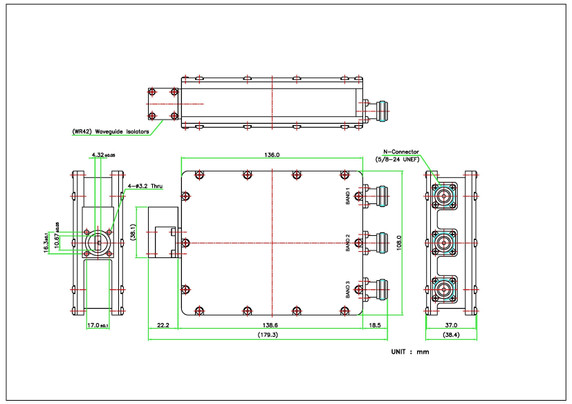

| PHYSICAL SPECIFICATIONS | |
| Product Height | 38.4 mm |
| Product Length | 138.6 mm |
| Product Weight | 1.1 kg w/G isolator |
| Product Width | 108 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Weight | | |
| Warranty | 3 years |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 17.70 - 18.20 GHz |
| Input Frequency Band 2 | 18.20 - 19.20 GHz |
| Input Frequency Band 3 | 19.20 - 20.20 GHz |
| LO Frequency 1 | 16.75 GHz |
| LO Frequency 2 | 17.25 GHz |
| LO Frequency 3 | 18.25 GHz |
| LO Type | PLL |
| Number Of Onboard Los | Triple-Band |
| Output Frequency Band 1 | 950 - 1450 MHz |
| Output Frequency Band 2 | 950 - 1950 MHz |
| Output Frequency Band 3 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p max. |
| Image Rejection | 40 dBc min. |
| Input VSWR | 1.5 : 1 max. with w/G isolator |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| Spurious | -60 dBc @ 10 dBm (in band) ; -50 dBc @ 10 dBm (out of band) |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 320 mA |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-42 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 38.4 mm |
| Product Length | 138.6 mm |
| Product Weight | 1.1 kg w/G isolator |
| Product Width | 108 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Weight | | |
| Warranty | 3 years |
