Norsat International Inc.
Norsat 7000XUAN Quad-Band Ka-Band PLL LNB - 7000 Series
Product Code:
7000XUAN
Condition:
New
Weight:
0.40 KGS
Width:
11.30
(cm)
Height:
4.40
(cm)
Depth:
4.30
(cm)
$3,500.00
Norsat 7000 Quad-Band Ka-Band PLL LNB - 7000 Series
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | Ka-Band: 17.2 - 18.2 GHz |
| Input Frequency Band 2 | Ka-Band: 18.2 - 19.2 GHz |
| Input Frequency Band 3 | Ka-Band: 19.20 - 20.20 GHz |
| Input Frequency Band 4 | Ka-Band: 20.20 - 21.20 GHz |
| LO Frequency 1 | 16.25 GHz |
| LO Frequency 2 | 17.25 GHz |
| LO Frequency 3 | 18.25 GHz |
| LO Frequency 4 | 19.25 GHz |
| LO Stability | External Reference |
| LO Type | PLL |
| Noise Figure | 1.3 dB typ., 1.5 dB max. at room temp. @ CF |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| Output Frequency 2 | L-Band: 950 - 1950 MHz |
| Output Frequency 3 | L-Band: 950 - 1950 MHz |
| Output Frequency 4 | L-Band: 950 - 1950 MHz |
| Tone Frequency | 22 kHz ± 4 kHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13 V |
| Control Signal 2 | 13 V / 22 KHz Tone |
| Control Signal 3 | 18 V |
| Control Signal 4 | 18 V / 22 KHz Tone |
| Conversion Gain | 60 dB typ., 55 dB min, 65 dB max. |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p max. |
| Input VSWR | 2.5 : 1 max. |
| Output P1dB | + 5 dBm min. |
| Phase Noise 100khz Offset | -93 dBc/Hz |
| Phase Noise 10khz Offset | -83 dBc/Hz |
| Phase Noise 1khz Offset | -73 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Drain | 450 mA Max |
| Power Requirements | 12 - 24 V |
| Power Requirements Tone | Frequency 22 kHz ± 4 kHz Amplitude Voltage 0.6 ± 0.2 V Duty Cycle 50% ± 10% |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-42 Waveguide Grooved |
| RF Output Connector | F-Connector (75 Ohm) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 100% |
| Temperature Operational | -40 to +70˚C |
| Temperature Storage | -45 to +80˚C |
| Weight | 400 g Max |
| PHYSICAL SPECIFICATIONS | |

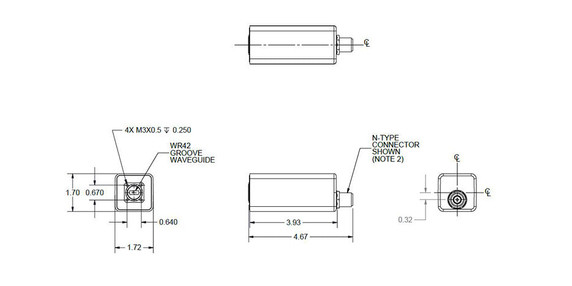

| Dimensions (LxWxH) | 4.67 x 1.72 x 1.70 in |
5 customers are viewing this product
Details
Norsat 7000 Quad-Band Ka-Band PLL LNB - 7000 Series
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | Ka-Band: 17.2 - 18.2 GHz |
| Input Frequency Band 2 | Ka-Band: 18.2 - 19.2 GHz |
| Input Frequency Band 3 | Ka-Band: 19.20 - 20.20 GHz |
| Input Frequency Band 4 | Ka-Band: 20.20 - 21.20 GHz |
| LO Frequency 1 | 16.25 GHz |
| LO Frequency 2 | 17.25 GHz |
| LO Frequency 3 | 18.25 GHz |
| LO Frequency 4 | 19.25 GHz |
| LO Stability | External Reference |
| LO Type | PLL |
| Noise Figure | 1.3 dB typ., 1.5 dB max. at room temp. @ CF |
| Output Frequency 1 | L-Band: 950 - 1950 MHz |
| Output Frequency 2 | L-Band: 950 - 1950 MHz |
| Output Frequency 3 | L-Band: 950 - 1950 MHz |
| Output Frequency 4 | L-Band: 950 - 1950 MHz |
| Tone Frequency | 22 kHz ± 4 kHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13 V |
| Control Signal 2 | 13 V / 22 KHz Tone |
| Control Signal 3 | 18 V |
| Control Signal 4 | 18 V / 22 KHz Tone |
| Conversion Gain | 60 dB typ., 55 dB min, 65 dB max. |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p max. |
| Input VSWR | 2.5 : 1 max. |
| Output P1dB | + 5 dBm min. |
| Phase Noise 100khz Offset | -93 dBc/Hz |
| Phase Noise 10khz Offset | -83 dBc/Hz |
| Phase Noise 1khz Offset | -73 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Drain | 450 mA Max |
| Power Requirements | 12 - 24 V |
| Power Requirements Tone | Frequency 22 kHz ± 4 kHz Amplitude Voltage 0.6 ± 0.2 V Duty Cycle 50% ± 10% |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-42 Waveguide Grooved |
| RF Output Connector | F-Connector (75 Ohm) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 100% |
| Temperature Operational | -40 to +70˚C |
| Temperature Storage | -45 to +80˚C |
| Weight | 400 g Max |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (LxWxH) | 4.67 x 1.72 x 1.70 in |
