Norsat International Inc.
Norsat 7000-100003 7000 Single-Band Ka-Band PLL LNB
Product Code:
7000-100003
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.40 KGS
Width:
4.37
(cm)
Height:
4.32
(cm)
Depth:
11.86
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 20.20 - 21.20 GHz |
| LO Frequency 1 | 19.25 GHz |
| LO Type | Auto-reference |
| Noise Figure Max | 1.5 dB |
| Noise Figure Typ | 1.3 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p max. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 450 mA max |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-42 Waveguide Grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 100% |
| IP Rating | IP 66 |
| Temperature Operational | -40 to +70˚C |
| Temperature Storage | -45 to +80˚C |

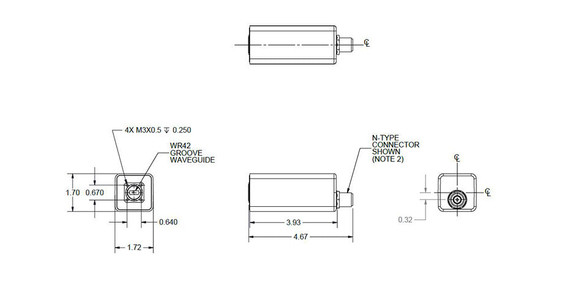

| PHYSICAL SPECIFICATIONS | |
| Product Height | 1.70 in |
| Product Length | 4.67 in |
| Product Weight | 0.4 kg |
| Product Width | 1.72 in |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 135 x 68 x 48 mm |
| Unit Package Height | 48 mm |
| Unit Package Length | 135 mm |
| Unit Package Weight | 0.48 kg |
| Unit Package Width | 68 mm |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 20.20 - 21.20 GHz |
| LO Frequency 1 | 19.25 GHz |
| LO Type | Auto-reference |
| Noise Figure Max | 1.5 dB |
| Noise Figure Typ | 1.3 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p max. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 450 mA max |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-42 Waveguide Grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 100% |
| IP Rating | IP 66 |
| Temperature Operational | -40 to +70˚C |
| Temperature Storage | -45 to +80˚C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 1.70 in |
| Product Length | 4.67 in |
| Product Weight | 0.4 kg |
| Product Width | 1.72 in |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 135 x 68 x 48 mm |
| Unit Package Height | 48 mm |
| Unit Package Length | 135 mm |
| Unit Package Weight | 0.48 kg |
| Unit Package Width | 68 mm |
