Norsat International Inc.

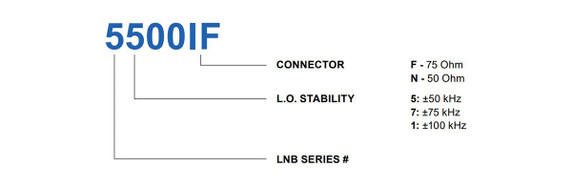

Norsat 5500IF 5000I C-Band Single Band PLL LNB
Product Code:
5500IF
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.58 KGS
Width:
9.90
(cm)
Height:
7.00
(cm)
Depth:
17.90
(cm)
$264.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 4.50 - 4.80 GHz |
| LO Frequency 1 | 5.95 GHz |
| LO Stability | ±50 kHz |
| LO Type | PLL |
| Noise Figure Max | 30K |
| Noise Figure Typ | 15K |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 1150 - 1450 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 62 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p max. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 10 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -65 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | CPR 229G waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -50 to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 70 mm |
| Product Length | 179 mm |
| Product Weight | 0.575 kg |
| Product Width | 99 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.443 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.1075 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 77 mm |
| Package Length Case 1 | 190 mm |
| Package Width Case 1 | 115 mm |
| Unit Package Dimensions | 190 x 115 x 77 mm |
| Unit Package Weight | 0.66 kg |
| Warranty | 3 years |
