Norsat International Inc.

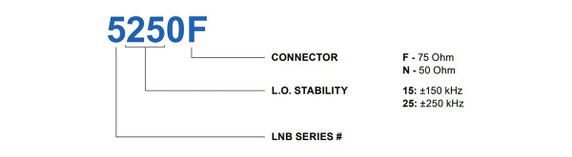

Norsat 5000 Series 5150F C-Band Single-Band LNB
Norsat's Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry's leading provider of high performance LNBs. LNB, C-PLL, 3.40-4.20GHZ, LOF: 5.15GHZ, LO:+/-150KHZ, F-CONN
KEY SPECIFICATIONS | |
Product Family | 5000 Series |
Band | C-Band |
LO Type | PLL |
# of onboard LOs | Single-band |
LO Stability | +/- 150 kHz |
Noise Figure | 15 K |
Input Frequency - Band 1 | C-Band: 3.40 - 4.20 GHz |
Output Frequency 1 | L-Band: 950 - 1750 MHz |
RF SPECIFICATIONS | |
LO Frequency 1 | 5.15 GHz |
Phase Noise @ 1KHz offset | -65 dBc/Hz |
Phase Noise @ 10KHz offset | -80 dBc/Hz |
Phase Noise @ 100KHz offset | -95 dBc/Hz |
Conversion Gain | 62 dB typ., 55 dB min., 70 dB max. |
Input VSWR | 2.5 : 1 |
Output VSWR | 2.5 : 1 |
Output P1dB compression point | 5 dBm |
ELECTRICAL SPECIFICATIONS | |
Power Requirements | 12 - 24 V |
Current Drain | 250 mA |
INTERFACE SPECIFICATIONS | |
RF Input Connector | CPR 229G waveguide grooved |
RF Output Connector | F-75 Ohm |
ENVIRONMENTAL SPECIFICATIONS | |
Temperature - Operational | -40 to +60°C |
Temperature - Storage | -50 to +70°C |
PHYSICAL SPECIFICATIONS | |
Dimensions (L x W x H) | 190 x 115 x 78 mm |
Weight | 580 g |
