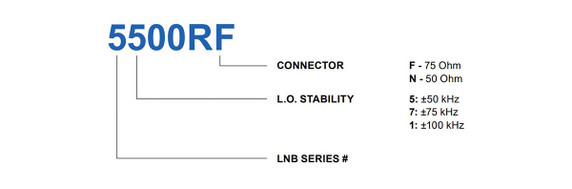

Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. LNB, C-PLL, 3.70-4.20GHZ, LOF: 5.15GHZ, LO:+/-100KHZ, N-CONN
KEY SPECIFICATIONS | |
Product Family | 5000 Series |
Band | C-Band |
LO Type | PLL |
# of onboard LOs | Single-band |
LO Stability | +/- 100 kHz |
Noise Figure | 15 K |
Input Frequency - Band 1 | C-Band: 3.70 - 4.20 GHz |
Output Frequency 1 | L-Band: 950 - 1450 MHz |
RF SPECIFICATIONS | |
LO Frequency 1 | 5.15 GHz |
Phase Noise @ 1KHz offset | -65 dBc/Hz |
Phase Noise @ 10KHz offset | -80 dBc/Hz |
Phase Noise @ 100KHz offset | -95 dBc/Hz |
Conversion Gain | 62 dB typ., 55 dB min., 70 dB max. |
Input VSWR | 2.5 : 1 |
Output VSWR | 2.5 : 1 |
Output P1dB compression point | 10 dBm |
ELECTRICAL SPECIFICATIONS | |
Power Requirements | 12 - 24 V |
Current Drain | 250 mA |
INTERFACE SPECIFICATIONS | |
RF Input Connector | CPR 229G waveguide grooved |
RF Output Connector | N-50 Ohm |
M & C SPECIFICATIONS | |
LED Indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
Temperature - Operational | -40 to +60°C |
Temperature - Storage | -50 to +70°C |

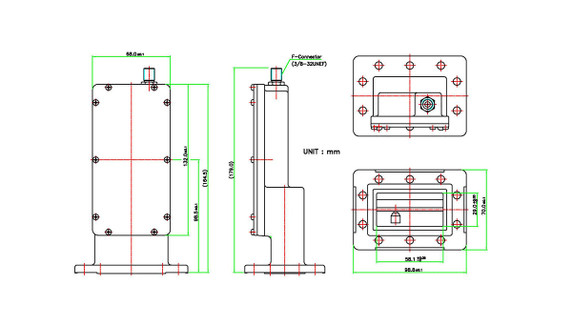

PHYSICAL SPECIFICATIONS | |
Dimensions (L x W x H) | 190 x 115 x 78 mm |
Weight | 580 g |
