Norsat International Inc.

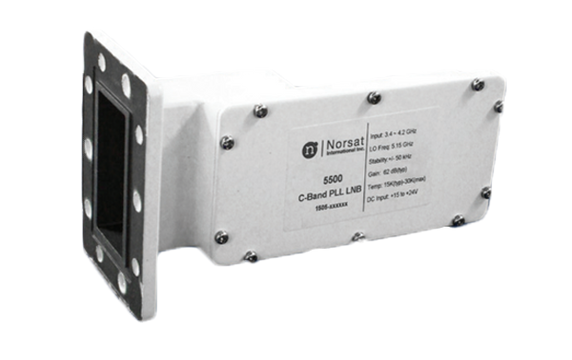

Norsat 5000-100001 5000 C-Band Single-Band PLL LNB
Product Code:
5000-100001
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.58 KGS
Width:
11.40
(cm)
Height:
7.90
(cm)
Depth:
19.00
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.70 - 4.20 GHz |
| LO Frequency 1 | 5.15 GHz |
| LO Type | PLL |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 62 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p |
| Input VSWR | 2.5 : 1 max. |
| Noise Temperature | 30K max., 15K typ. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -65 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 250 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | CPR 229G waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -50 to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 79 mm |
| Product Length | 190 mm |
| Product Weight | 0.580 kg |
| Product Width | 114 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
