Norsat International Inc.

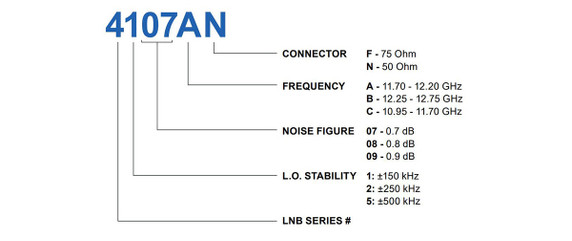

Norsat 4000 Series 4208AN Ku-Band Single-Band LNB
Product Code:
4208AN
Availability:
YES
Weight:
0.20 KGS
Width:
4.30
(cm)
Height:
4.30
(cm)
Depth:
8.50
(cm)
$146.00
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. KU-BAND PLL LNB; 11.70-12.20GHZ; LO: +/-250KHZ; NF: 0.8DB; N-CONN
| KEY SPECIFICATIONS | |
| Product Family | 4000 Series |
| Band | Ku-Band |
| LO Type | PLL |
| # of onboard LOs | Single-band |
| LO Stability | ±250 kHz |
| Noise Figure | 0.8 dB |
| Input Frequency - Band 1 | Ku-Band: 11.70 - 12.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 10.75 GHz |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -90 dBc/Hz |
| Conversion Gain | 60 dB typ |
| Input VSWR | 2.5 : 1 |
| Output VSWR | 2.5 : 1 |
| Output P1dB compression point | 2 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| Current Drain | 120 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-75 waveguide grooved |
| RF Output Connector | N-50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 85 x 43 x 43 mm |
| Weight | 200 g |
5 customers are viewing this product
Details
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. KU-BAND PLL LNB; 11.70-12.20GHZ; LO: +/-250KHZ; NF: 0.8DB; N-CONN
| KEY SPECIFICATIONS | |
| Product Family | 4000 Series |
| Band | Ku-Band |
| LO Type | PLL |
| # of onboard LOs | Single-band |
| LO Stability | ±250 kHz |
| Noise Figure | 0.8 dB |
| Input Frequency - Band 1 | Ku-Band: 11.70 - 12.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 10.75 GHz |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -90 dBc/Hz |
| Conversion Gain | 60 dB typ |
| Input VSWR | 2.5 : 1 |
| Output VSWR | 2.5 : 1 |
| Output P1dB compression point | 2 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 15 - 24 V |
| Current Drain | 120 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-75 waveguide grooved |
| RF Output Connector | N-50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 85 x 43 x 43 mm |
| Weight | 200 g |
