Norsat International Inc.

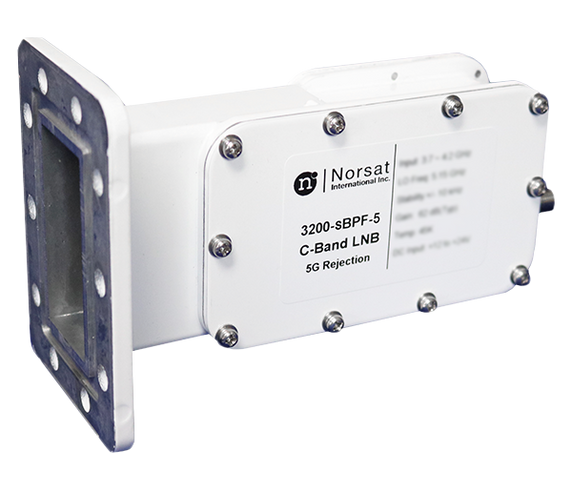

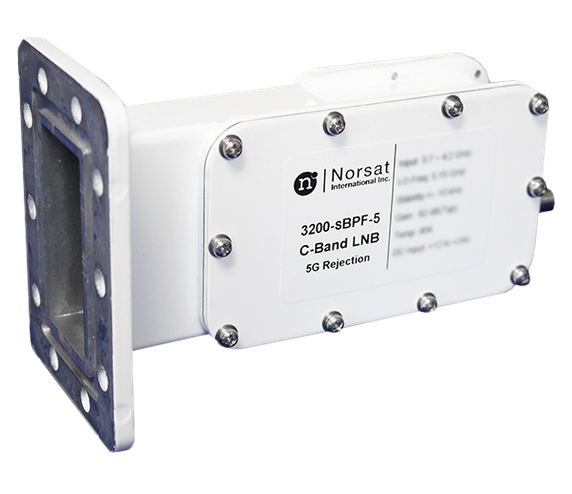

Norsat 3200N-SBPF-5 C-Band 5G LNB and Switching Bandpass Filter
Product Code:
3200N-SBPF-5
Condition:
New
Availability:
YES
Weight:
0.50 KGS
Width:
15.90
(cm)
Height:
7.00
(cm)
Depth:
9.85
(cm)
$3,080.00
Norsat 3000-sBPF Series C-Band 5G LNB and Switching Bandpass Filter
Norsat’s Low Noise Block downconverter plus Switching Band Pass Filter provide signal reception for satellite communications while rejecting terrestrial interference in C-Band. We offer premium performance and reliability in the smallest form factor possible. Backed by a 3 year warranty and over forty years of experience as the industry’s leading provider of high performance microwave components. 3200-sBPF Series.
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | C-Band: 3.40 - 4.20 GHz |
| Input Frequency Band 2 | C-Band: 3.90 - 4.20 GHz |
| Lo Stability | ± 25 kHz max. |
| Lo Type | PLL |
| Noise Figure | 37K typ. |
| Output Frequency 1 | L-Band: 950 - 1250 MHz |
| Output Frequency 2 | L-Band: 950 - 1150 MHz |
| Product Family | 3000-SBPF Series |
| RF SPECIFICATIONS | |
| Conversion Gain | 60 dB typ., 55 dB min., 70 dB max. |
| Input VSWR | 2.2 : 1 |
| Lo Frequency 1 | 5.15 GHz |
| Lo Frequency 2 | 5.15 GHz |
| Output VSWR | 2.5 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Current Drain | 400 mA |
| Input Voltage | Band 1: 13V/ Band 2: 18V |
| Power Requirements | 12 - 24 V |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-229 waveguide grooved |
| RF Output Connector | N-50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -50 to +70°C |
| PHYSICAL SPECIFICATIONS | |

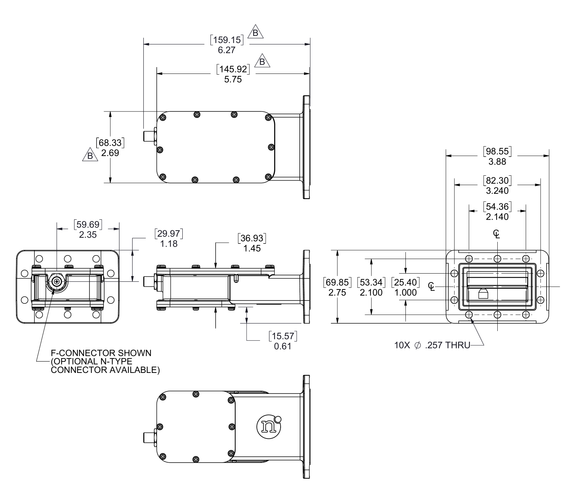

| Dimensions (LxWxH) | 159 x 98.5 x 70 mm |
5 customers are viewing this product
Details
Norsat 3000-sBPF Series C-Band 5G LNB and Switching Bandpass Filter
Norsat’s Low Noise Block downconverter plus Switching Band Pass Filter provide signal reception for satellite communications while rejecting terrestrial interference in C-Band. We offer premium performance and reliability in the smallest form factor possible. Backed by a 3 year warranty and over forty years of experience as the industry’s leading provider of high performance microwave components. 3200-sBPF Series.
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | C-Band: 3.40 - 4.20 GHz |
| Input Frequency Band 2 | C-Band: 3.90 - 4.20 GHz |
| Lo Stability | ± 25 kHz max. |
| Lo Type | PLL |
| Noise Figure | 37K typ. |
| Output Frequency 1 | L-Band: 950 - 1250 MHz |
| Output Frequency 2 | L-Band: 950 - 1150 MHz |
| Product Family | 3000-SBPF Series |
| RF SPECIFICATIONS | |
| Conversion Gain | 60 dB typ., 55 dB min., 70 dB max. |
| Input VSWR | 2.2 : 1 |
| Lo Frequency 1 | 5.15 GHz |
| Lo Frequency 2 | 5.15 GHz |
| Output VSWR | 2.5 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Current Drain | 400 mA |
| Input Voltage | Band 1: 13V/ Band 2: 18V |
| Power Requirements | 12 - 24 V |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-229 waveguide grooved |
| RF Output Connector | N-50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -50 to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (LxWxH) | 159 x 98.5 x 70 mm |
