Norsat International Inc.
Norsat 3120RN 3000R C-Band Single Band PLL LNB

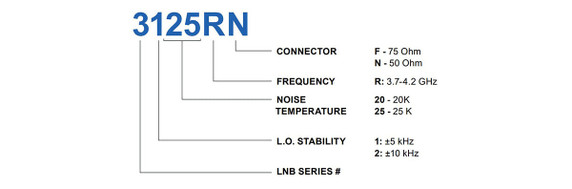

Product Code:
3120RN
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.58 KGS
Width:
10.00
(cm)
Height:
7.00
(cm)
Depth:
18.00
(cm)
$484.00
| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.70 - 4.20 GHz |
| LO Frequency 1 | 5.15 GHz |
| LO Stability | ±5 kHz |
| LO Type | PLL |
| Noise Figure Max | 25K |
| Noise Figure Typ | 20K |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p max. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 8 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| Phase Noise 1Khz Offset Max | -73 dBc/Hz |
| Phase Noise 10Khz Offset Max | -83 dBc/Hz |
| Phase Noise 100Khz Offset Max | -93 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | CPR 229G waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |

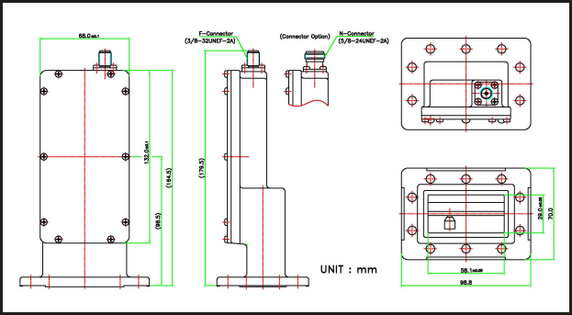

| PHYSICAL SPECIFICATIONS | |
| Product Height | 70 mm |
| Product Length | 180 mm |
| Product Weight | 0.575 kg |
| Product Width | 100 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.443 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 1.1075 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 80 mm |
| Package Length Case 1 | 190 mm |
| Package Width Case 1 | 115 mm |
| Unit Package Dimensions | 190 x 115 x 80 mm |
| Unit Package Weight | 0.68 kg |
| Warranty | 3 years |
