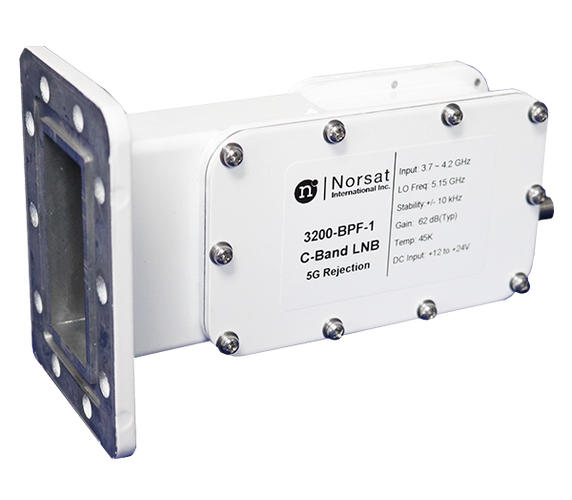

Norsat 3100F-BPF-3 C-Band 5G Rejection LNB and Band Pass Filter

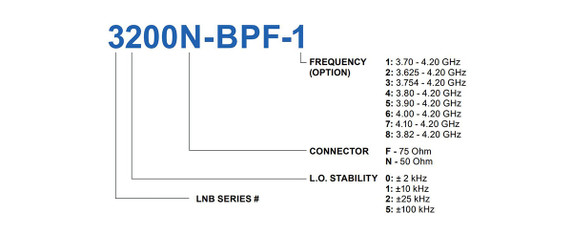

Norsat’s Low Noise Block downconverter plus Band Pass Filter provide signal reception for satellite communications while rejecting terrestrial interference in C-Band. We offer premium performance and reliability in the smallest form factor possible. Backed by a 3 year warranty and over forty years of experience as the industry’s leading provider of high performance microwave components. 3000-BPF Series.

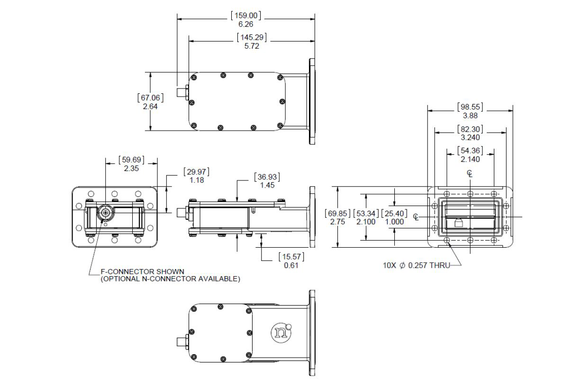

| KEY SPECIFICATIONS | |
| Band | C-Band |
| Input Frequency Band 1 | 3.754 - 4.20 GHz |
| LO Frequency 1 | 5.15 GHz |
| LO Stability | ±10 kHz |
| LO Type | PLL |
| Noise Figure Max | 60K |
| Noise Figure Typ | 37K |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1396 MHz |
| Product Family | 3000-BPF Series |
| Rejection Range | < 3.654 GHz and > 4.8 GHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 70 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 6 dB p-p max. |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 9 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| Phase Noise 1Khz Offset Max | -80 dBc/Hz |
| Phase Noise 10Khz Offset Max | -85 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 400 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | CPR 229G waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 66 |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -50 to +70°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 70 mm |
| Product Length | 159 mm |
| Product Weight | 0.5 kg |
| Product Width | 98.5 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.45 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 1.125 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 75 mm |
| Package Length Case 1 | 170 mm |
| Package Width Case 1 | 115 mm |
| Unit Package Dimensions | 170 x 115 x 75 mm |
| Unit Package Weight | 0.56 kg |
| Warranty | 3 years |
