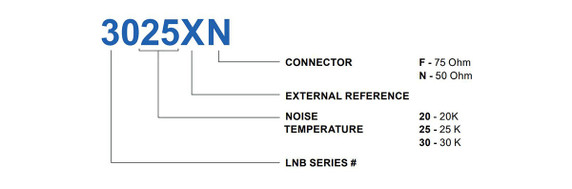

Norsat 3000 Series 3025XN C-Band Single-Band LNB
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. LNB,C-PLL,3.40-4.20GHZ,LOF:5.15GHZ,EXTREF,NT:25K,N-CONN
KEY SPECIFICATIONS | |
Product Family | 3000 Series |
Band | C-Band |
LO Type | External |
# of onboard LOs | Single-band |
LO Stability | Phase Locked to External Reference at 10MHz |
Noise Figure | 25 K |
Input Frequency - Band 1 | C-Band: 3.40 - 4.20 GHz |
Output Frequency 1 | L-Band: 950 - 1750 MHz |
RF SPECIFICATIONS | |
LO Frequency 1 | 5.15 GHz |
Phase Noise @ 1KHz offset | Depends on External Reference |
Phase Noise @ 10KHz offset | Depends on External Reference |
Phase Noise @ 100KHz offset | Depends on External Reference |
Conversion Gain | 65 dB |
Gain Variation over operating band | ≤ 4 dB p-p |
Input VSWR | 2.3 : 1 |
Output VSWR | 2.3 : 1 |
Output P1dB compression point | 3 dBm |
ELECTRICAL SPECIFICATIONS | |
Power Requirements | 12 - 24 V |
Current Drain | 250 mA |
INTERFACE SPECIFICATIONS | |
RF Input Connector | CPR 229G waveguide grooved |
RF Output Connector | N-50 Ohm |
M & C SPECIFICATIONS | |
LED Indicators | None |
ENVIRONMENTAL SPECIFICATIONS | |
Temperature - Operational | -40 to +60°C |
PHYSICAL SPECIFICATIONS | |

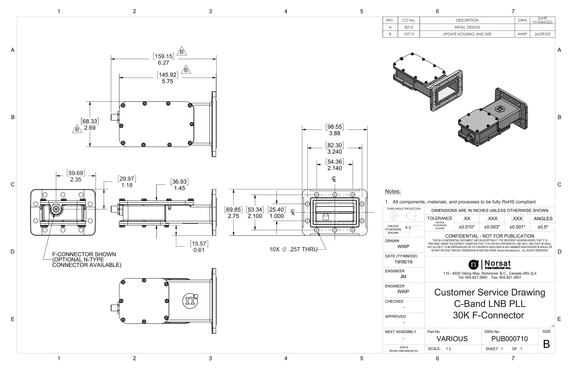

Dimensions (L x W x H) | 180 x 100 x 70 mm |
Weight | 575g |
