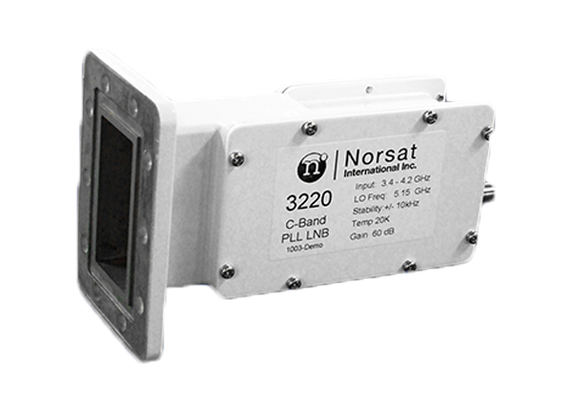

Norsat 3000 Series 3020XN C-Band Single-Band LNB

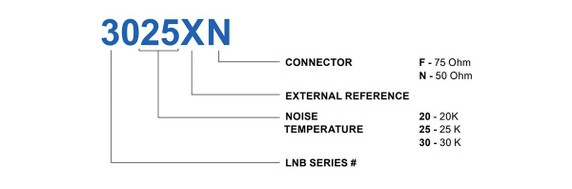

Product Code:
3020XN
Availability:
YES
Weight:
0.58 KGS
Width:
10.00
(cm)
Height:
7.00
(cm)
Depth:
18.00
(cm)
$597.00
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard C-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. LNB,C-PLL,3.40-4.20GHZ,LOF:5.15GHZ,EXTREF,NT:20K,N-CONN

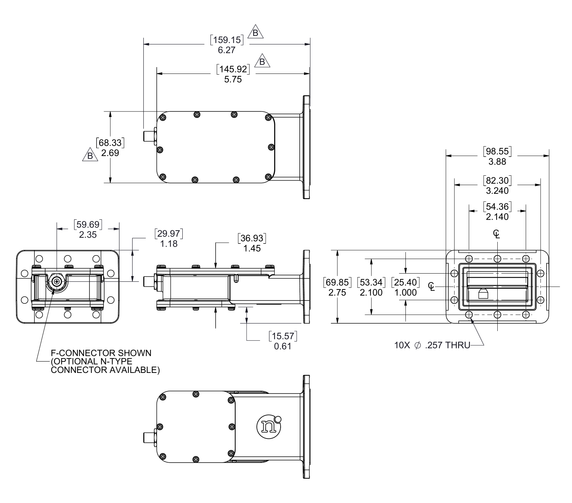

| KEY SPECIFICATIONS | |
| Product Family | 3000 Series |
| Band | C-Band |
| LO Type | External |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference at 10MHz |
| Noise Figure | 20 K |
| Input Frequency - Band 1 | C-Band: 3.40 - 4.20 GHz |
| Output Frequency 1 | L-Band: 950 - 1750 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 5.15 GHz |
| Phase Noise @ 1KHz offset | Depends on External Reference |
| Phase Noise @ 10KHz offset | Depends on External Reference |
| Phase Noise @ 100KHz offset | Depends on External Reference |
| Conversion Gain | 65 dB |
| Gain Variation over operating band | ≤ 4 dB p-p |
| Input VSWR | 2.3 : 1 |
| Output VSWR | 2.3 : 1 |
| Output P1dB compression point | 3 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 12 - 24 V |
| Current Drain | 250 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | CPR 229G waveguide grooved |
| RF Output Connector | N-50 Ohm |
| M & C SPECIFICATIONS | |
| LED Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 180 x 100 x 70 mm |
| Weight | 575g |
