Norsat International Inc.
Norsat 2209HUDN Quad-Band Ku-Band PLL LNB - 2009 Series
Product Code:
2209HUDN
Condition:
New
Weight:
0.30 KGS
Width:
11.30
(cm)
Height:
4.40
(cm)
Depth:
4.30
(cm)
$900.00

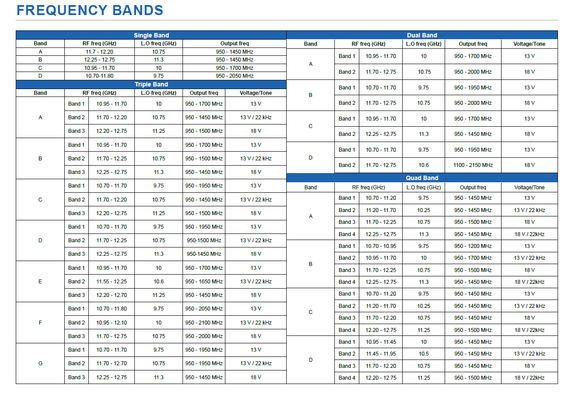

| KEY SPECIFICATIONS | |
|---|---|
| band | Ku-Band |
| input frequency band 1 | Ku-Band: 10.95 - 11.7 GHz |
| input frequency band 2 | Ku-Band: 11.7 - 12.25 GHz |
| input frequency band 3 | Ku-Band: 12.25 - 12.75 GHz |
| input frequency band 4 | Ku-Band: 10.7 - 11.7 GHz |
| L.O. stability | +/- 25 kHz |
| L.O. type | PLL |
| noise figure | 0.9 dB typ., 1.0 dB max. at room temp. @ CF |
| output frequency 1 | L-Band: 950 - 1700 MHz |
| output frequency 2 | L-Band: 950 - 1500 MHz |
| output frequency 3 | L-Band: 950 - 1450 MHz |
| output frequency 4 | L-Band: 950 - 1950 MHz |
| tone frequency | 22 kHz ± 4 kHz |
| RF SPECIFICATIONS | |
|---|---|
| conversion gain | 60 dB Typ., 55 dB min. 65 dB max. |
| Gain Flatness (over full band) | ≤ 6 dB p-p |
| input VSWR | 2.3 : 1 max. |
| L.O. frequency 1 | 10.00 GHz |
| L.O. frequency 2 | 10.75 GHz |
| L.O. frequency 3 | 11.3 GHz |
| L.O. frequency 4 | 9.75 GHz |
| output P1dB | + 5 dBm min. |
| phase noise 100khz offset | -93 dBc/Hz |
| phase noise 10khz offset | -80 dBc/Hz |
| phase noise 1khz offset | -75 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| current drain | 350 mA Max |
| power requirements | 12 - 24 V |
| power requirements tone | Frequency 22 kHz ± 4 kHz Amplitude Voltage 0.6 ± 0.2 V Duty Cycle 50% ± 10% |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF input connector | WR-75 waveguide grooved |
| RF output connector | N-Connector (50 Ohm) |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | 0 - 95% |
| temperature operational | -40 to +70˚C |
| temperature storage | -50 to +80˚C |
| Weight | 255 g |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| dimensions (LxWxH) | 4.46 x 1.72 x 1.70 in |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
|---|---|
| band | Ku-Band |
| input frequency band 1 | Ku-Band: 10.95 - 11.7 GHz |
| input frequency band 2 | Ku-Band: 11.7 - 12.25 GHz |
| input frequency band 3 | Ku-Band: 12.25 - 12.75 GHz |
| input frequency band 4 | Ku-Band: 10.7 - 11.7 GHz |
| L.O. stability | +/- 25 kHz |
| L.O. type | PLL |
| noise figure | 0.9 dB typ., 1.0 dB max. at room temp. @ CF |
| output frequency 1 | L-Band: 950 - 1700 MHz |
| output frequency 2 | L-Band: 950 - 1500 MHz |
| output frequency 3 | L-Band: 950 - 1450 MHz |
| output frequency 4 | L-Band: 950 - 1950 MHz |
| tone frequency | 22 kHz ± 4 kHz |
| RF SPECIFICATIONS | |
|---|---|
| conversion gain | 60 dB Typ., 55 dB min. 65 dB max. |
| Gain Flatness (over full band) | ≤ 6 dB p-p |
| input VSWR | 2.3 : 1 max. |
| L.O. frequency 1 | 10.00 GHz |
| L.O. frequency 2 | 10.75 GHz |
| L.O. frequency 3 | 11.3 GHz |
| L.O. frequency 4 | 9.75 GHz |
| output P1dB | + 5 dBm min. |
| phase noise 100khz offset | -93 dBc/Hz |
| phase noise 10khz offset | -80 dBc/Hz |
| phase noise 1khz offset | -75 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
|---|---|
| current drain | 350 mA Max |
| power requirements | 12 - 24 V |
| power requirements tone | Frequency 22 kHz ± 4 kHz Amplitude Voltage 0.6 ± 0.2 V Duty Cycle 50% ± 10% |
| INTERFACE SPECIFICATIONS | |
|---|---|
| RF input connector | WR-75 waveguide grooved |
| RF output connector | N-Connector (50 Ohm) |
| ENVIRONMENTAL SPECIFICATIONS | |
|---|---|
| humidity | 0 - 95% |
| temperature operational | -40 to +70˚C |
| temperature storage | -50 to +80˚C |
| Weight | 255 g |
| PHYSICAL SPECIFICATIONS | |
|---|---|
| dimensions (LxWxH) | 4.46 x 1.72 x 1.70 in |
