Norsat International Inc.
Norsat 2109HUBF 2000 Quad-Band Ku-Band PLL LNB (0.9 dB)
Product Code:
2109HUBF
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.26 KGS
Width:
4.37
(cm)
Height:
4.32
(cm)
Depth:
11.33
(cm)
$950.00

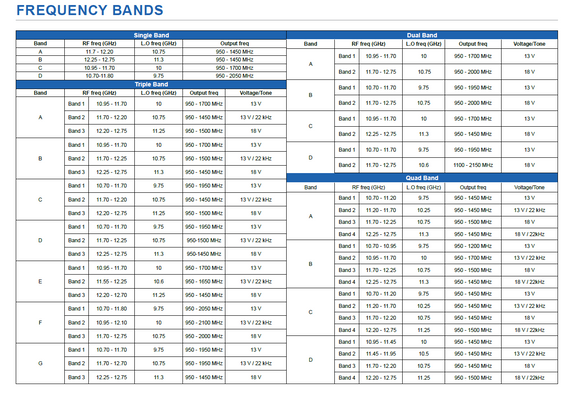

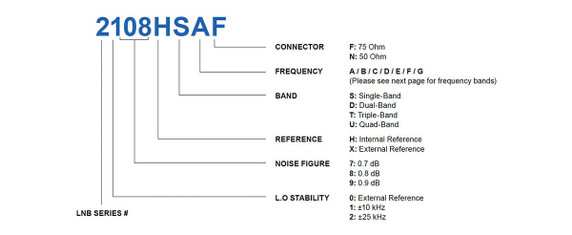

| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 10.70 - 10.95 GHz |
| Input Frequency Band 2 | 10.95 - 11.70 GHz |
| Input Frequency Band 3 | 11.70 - 12.25 GHz |
| Input Frequency Band 4 | 12.25 - 12.75 GHz |
| LO Frequency 1 | 9.75 GHz |
| LO Frequency 2 | 10.00 GHz |
| LO Frequency 3 | 10.75 GHz |
| LO Frequency 4 | 11.30 GHz |
| LO Stability | ±10 kHz |
| LO Type | PLL |
| Noise Figure Max | 1.0 dB |
| Noise Figure Typ | 0.9 dB |
| Number Of Onboard Los | Quad-Band |
| Output Frequency Band 1 | 950 - 1200 MHz |
| Output Frequency Band 2 | 950 - 1700 MHz |
| Output Frequency Band 3 | 950 - 1500 MHz |
| Output Frequency Band 4 | 950 - 1450 MHz |
| Tone Frequency | 22 kHz ± 4 kHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 13V / 22kHz Tone |
| Control Signal 3 | 18V / No Tone |
| Control Signal 4 | 18V / 22kHz Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 6 dB p-p |
| Input VSWR | 2.3 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| Phase Noise 0.1Khz Offset Max | -125 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA max |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 - 95% |
| IP Rating | IP 66 |
| Temperature Operational | -40°C to +70°C |
| Temperature Storage | -50 to +80˚C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 1.70 in |
| Product Length | 4.46 in |
| Product Weight | 0.255 kg |
| Product Width | 1.72 in |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.23 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 0.575 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 135 x 68 x 48 mm |
| Unit Package Height | 48 mm |
| Unit Package Length | 135 mm |
| Unit Package Weight | 0.335 kg |
| Unit Package Width | 68 mm |
| Warranty | 3 years |
