Norsat 2108HTDF Triple-Band Ku-Band PLL LNB - 2008 Series

No reviews yet
Product Code: 2108HTDF
Condition: New
Weight: 0.30 KGS
Width: 11.30 (cm)
Height: 4.40 (cm)
Depth: 4.30 (cm)
$830.00

Norsat 2000 Triple-Band Ku-Band PLL LNB - 2008 Series

KEY SPECIFICATIONS
band Ku-Band

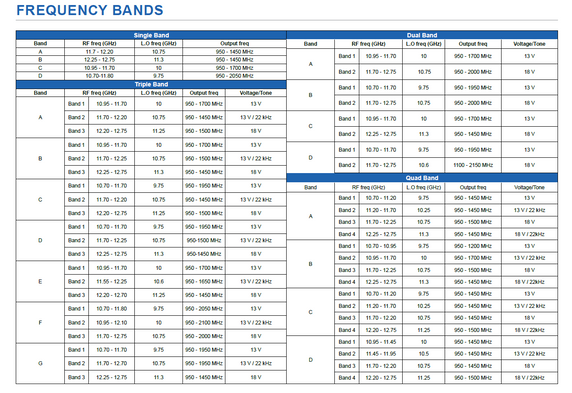

input frequency band 1 Ku-Band: 10.70 - 11.70 GHz
input frequency band 2 Ku-Band: 11.7 - 12.25 GHz
input frequency band 3 Ku-Band: 12.25 - 12.75 GHz
LO frequency 1 9.75 GHz
LO frequency 2 10.75 GHz
LO frequency 3 11.3 GHz
LO stability +/- 10 kHz
LO type PLL
noise figure 0.8 dB typ., 0.9 dB max. at room temp. @ CF
output frequency 1 L-Band: 950 - 1950 MHz
output frequency 2 L-Band: 950 - 1500 MHz
output frequency 3 L-Band: 950 - 1450 MHz
tone frequency 22 kHz ± 4 kHz
RF SPECIFICATIONS
conversion gain 60 dB Typ., 55 dB min. 65 dB max.
Gain Flatness (over full band) ≤ 6 dB p-p
input VSWR 2.3 : 1 max.
output P1dB + 5 dBm min.
phase noise 100khz offset -93 dBc/Hz
phase noise 10khz offset -80 dBc/Hz
phase noise 1khz offset -75 dBc/Hz
ELECTRICAL SPECIFICATIONS
current drain 350 mA Max
power requirements 12 - 24 V
power requirements tone Frequency 22 kHz ± 4 kHz Amplitude Voltage 0.6 ± 0.2 V Duty Cycle 50% ± 10%
INTERFACE SPECIFICATIONS
RF input connector WR-75 waveguide grooved
RF output connector F-Connector (75 Ohm)
ENVIRONMENTAL SPECIFICATIONS
humidity 0 - 95%
temperature operational -40 to +70˚C
temperature storage -50 to +80˚C
Weight 255 g

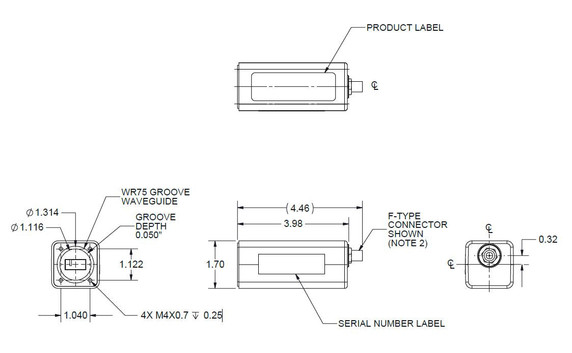

PHYSICAL SPECIFICATIONS
dimensions (LxWxH) 4.46 x 1.72 x 1.70 in

























5 customers are viewing this product
  • Norton Secured
  • TRUSTe Verified
  • Authorized.net
  • Accredited Business
  • Verified by Visa
  • Mastercard SecureCode
Details

Norsat 2000 Triple-Band Ku-Band PLL LNB - 2008 Series

KEY SPECIFICATIONS
band Ku-Band
input frequency band 1 Ku-Band: 10.70 - 11.70 GHz
input frequency band 2 Ku-Band: 11.7 - 12.25 GHz
input frequency band 3 Ku-Band: 12.25 - 12.75 GHz
LO frequency 1 9.75 GHz
LO frequency 2 10.75 GHz
LO frequency 3 11.3 GHz
LO stability +/- 10 kHz
LO type PLL
noise figure 0.8 dB typ., 0.9 dB max. at room temp. @ CF
output frequency 1 L-Band: 950 - 1950 MHz
output frequency 2 L-Band: 950 - 1500 MHz
output frequency 3 L-Band: 950 - 1450 MHz
tone frequency 22 kHz ± 4 kHz
RF SPECIFICATIONS
conversion gain 60 dB Typ., 55 dB min. 65 dB max.
Gain Flatness (over full band) ≤ 6 dB p-p
input VSWR 2.3 : 1 max.
output P1dB + 5 dBm min.
phase noise 100khz offset -93 dBc/Hz
phase noise 10khz offset -80 dBc/Hz
phase noise 1khz offset -75 dBc/Hz
ELECTRICAL SPECIFICATIONS
current drain 350 mA Max
power requirements 12 - 24 V
power requirements tone Frequency 22 kHz ± 4 kHz Amplitude Voltage 0.6 ± 0.2 V Duty Cycle 50% ± 10%
INTERFACE SPECIFICATIONS
RF input connector WR-75 waveguide grooved
RF output connector F-Connector (75 Ohm)
ENVIRONMENTAL SPECIFICATIONS
humidity 0 - 95%
temperature operational -40 to +70˚C
temperature storage -50 to +80˚C
Weight 255 g
PHYSICAL SPECIFICATIONS
dimensions (LxWxH) 4.46 x 1.72 x 1.70 in
