Norsat International Inc.
Norsat 1208HEF 1000 Ku-Band Single Band PLL LNB
Product Code:
1208HEF
Condition:
New
Availability:
4 - 6 Weeks
Weight:
0.40 KGS
Width:
6.00
(cm)
Height:
4.20
(cm)
Depth:
13.00
(cm)
$998.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 10.95 - 12.75 GHz |
| LO Frequency 1 | 10.00 GHz |
| LO Stability | ±25 kHz |
| LO Type | PLL |
| Noise Figure Max | 1.0 dB |
| Noise Figure Typ | 0.8 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 2750 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness (Over Full Band) | ≤ 6 dB p-p |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 3 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| Phase Noise 100Khz Offset Max | -90 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA max. |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40°C to +60°C |
| Temperature Storage | -40 to +80°C |

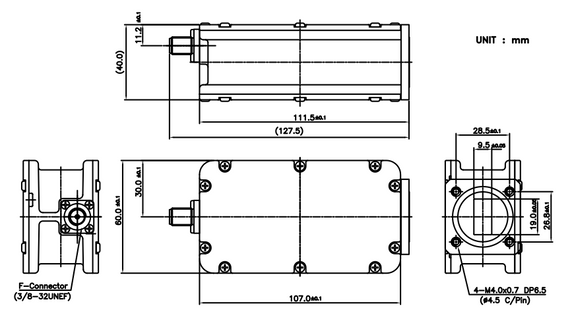

| PHYSICAL SPECIFICATIONS | |
| Product Height | 42 mm |
| Product Length | 130 mm |
| Product Weight | 0.4 kg |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.284 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.71 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 65 mm |
| Package Length Case 1 | 145 mm |
| Package Width Case 1 | 95 mm |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Warranty | 3 years |
