Norsat International Inc.

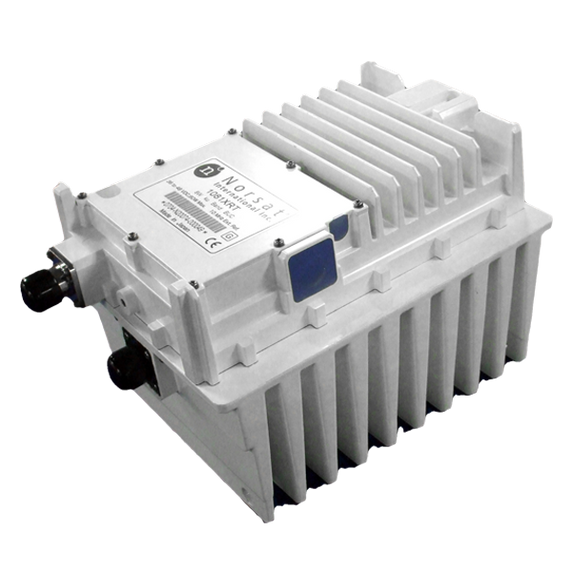

Norsat non-inverted 1081XRTSF 8W Ku-Band BUC
Product Code:
1081XRTSF
Availability:
YES
Weight:
4.00 KGS
Width:
13.00
(cm)
Height:
13.00
(cm)
Depth:
23.00
(cm)
$4,429.00
High efficiency of the Norsat BUCs reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| KEY SPECIFICATIONS | |
| Product Family | N/A |
| Band | Ku-Band |
| Output Power (Rated) | 8W |
| Input Frequency - Band 1 | L-Band: 950 - 1700 MHz |
| Output Frequency 1 | Ku-Band: 13.75 - 14.50 GHz |
| RF SPECIFICATIONS | |
| Output Power( P1dB) | 39 dBm |
| LO Frequency 1 | 12.8 GHz (13.05 GHz) |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -90 dBc/Hz |
| Gain Variation over temperature | 59 dB min,66 dB max |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption @ P1dB | 94W |
| Power Requirements | 48V |
| INTERFACE SPECIFICATIONS | |
| RF Output Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 230 x 130 x 130 mm |
| Weight | 4.0 kg |
5 customers are viewing this product
Details
High efficiency of the Norsat BUCs reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| KEY SPECIFICATIONS | |
| Product Family | N/A |
| Band | Ku-Band |
| Output Power (Rated) | 8W |
| Input Frequency - Band 1 | L-Band: 950 - 1700 MHz |
| Output Frequency 1 | Ku-Band: 13.75 - 14.50 GHz |
| RF SPECIFICATIONS | |
| Output Power( P1dB) | 39 dBm |
| LO Frequency 1 | 12.8 GHz (13.05 GHz) |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -90 dBc/Hz |
| Gain Variation over temperature | 59 dB min,66 dB max |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption @ P1dB | 94W |
| Power Requirements | 48V |
| INTERFACE SPECIFICATIONS | |
| RF Output Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 230 x 130 x 130 mm |
| Weight | 4.0 kg |
