Norsat International Inc.

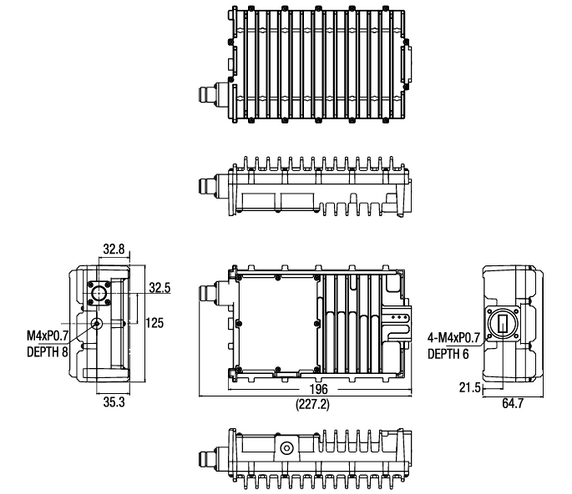

Norsat 1041XRTNE-T NON-INVERTED 4W Ku-Band BUC
Product Code:
1041XRTNE-T
Condition:
New
Availability:
3 pcs
Weight:
1.90 KGS
Width:
12.50
(cm)
Height:
6.50
(cm)
Depth:
22.80
(cm)
$1,275.93
High efficiency of the Norsat BUCs reduces power consumption significantly, delivering considerable operational cost savings over the lifetime of the device.
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Colour | Tan |
| Input Frequency Band 1 | 950 - 1700 MHz (950 to 1450 MHz) |
| LO Frequency 1 | 12.8 GHz (13.05 GHz) |
| Output Frequency Band 1 | 13.75 - 14.50 GHz (14.0 to 14.50 GHz) |
| Output Power Rated | 4W |
| RF SPECIFICATIONS | |
| External Reference Level | -5 to +5 dBm |
| External Reference Signal Frequency | 10 MHz |
| Gain Stability Over Temperature | ±2.25 dB at any constant frequency |
| Gain Variation Over Temperature And Frequency | 50 dB min, 60 dB max |
| Input VSWR | 2.0 : 1 |
| Output P1db | 36 dBm |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 100Khz Offset Max | -90 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | +15 to +24V supplied through center conductor of IF cable |
| INTERFACE SPECIFICATIONS | |
| Output Waveguide | WR75 - grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40°C to +55°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 65 mm |
| Product Length | 228 mm |
| Product Weight | 1.9 kg |
| Product Width | 125 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in Japan |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Warranty | 1 year |
