Norsat International Inc.

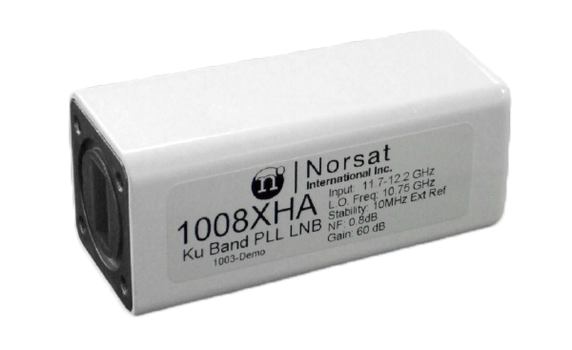

Norsat 1009XHCN-2-EOL 1000 Ku-Band Single Band EXT REF PLL LNB DEMO
Product Code:

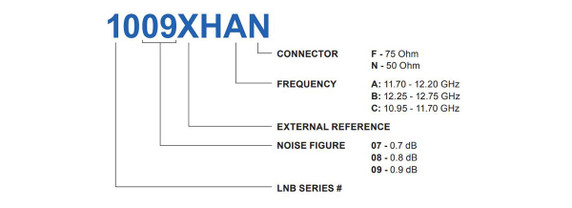

1009XHCN-2-EOL
Condition:
New
Availability:
2 pcs
Weight:
0.30 KGS
Width:
4.20
(cm)
Height:
4.20
(cm)
Depth:
11.00
(cm)
$638.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz (sine-wave), - 10 to 0 dBm |
| Input Frequency Band 1 | 10.95 - 11.70 GHz |
| LO Frequency 1 | 10.00 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 0.9 dB |
| Noise Figure Typ | 0.7 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1700 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| Phase Noise 1Khz Offset Max | Phase Locked to External Reference |
| Phase Noise 10Khz Offset Max | Phase Locked to External Reference |
| Phase Noise 100Khz Offset Max | Phase Locked to External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 200 mA |
| Power Requirements | +15 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +80°C |

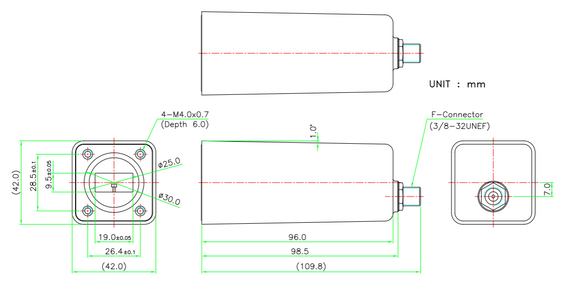

| PHYSICAL SPECIFICATIONS | |
| Product Height | 42 mm |
| Product Length | 110 mm |
| Product Weight | 0.3 kg |
| Product Width | 42 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 140 x 50 x 50 mm |
| Unit Package Height | 50 mm |
| Unit Package Length | 140 mm |
| Unit Package Width | 50 mm |
| Warranty | 3 years |
