Norsat International Inc.
Norsat 1000 Series 1008XFN-2 Ku-Band Single-Band LNB
Product Code:
1008XFN-2
Condition:
New
Availability:
YES
Weight:
0.45 KGS
Width:
6.00
(cm)
Height:
4.00
(cm)
Depth:
12.80
(cm)
$660.00
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. LNB,KU-PLL,11.70-12.75GHZ, LOF:10.75GHZ, EXTREF, NF:0.8DB, N-CONN, NORSAT LOGO
| KEY SPECIFICATIONS | |
| Product Family | 1000 Series |
| Band | Ku-Band |
| LO Type | External |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference at 10MHz |
| Noise Figure | 0.8 dB |
| Input Frequency - Band 1 | Ku-Band: 11.70 - 12.75 GHz |
| Output Frequency 1 | L-Band: 950 - 2000 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 10.75 GHz |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 60 dB typ |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 12 - 24 V |
| Current Drain | 250 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-75 waveguide grooved |
| RF Output Connector | N-50 Ohm |
| M & C SPECIFICATIONS | |
| LED Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Humidity | 0 - 95% |
| PHYSICAL SPECIFICATIONS | |

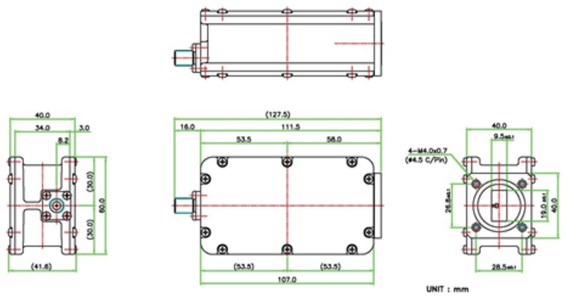

| Dimensions (L x W x H) | 128 x 60 x 40 mm |
| Weight | 450 g |
5 customers are viewing this product
Details
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. LNB,KU-PLL,11.70-12.75GHZ, LOF:10.75GHZ, EXTREF, NF:0.8DB, N-CONN, NORSAT LOGO
| KEY SPECIFICATIONS | |
| Product Family | 1000 Series |
| Band | Ku-Band |
| LO Type | External |
| # of onboard LOs | Single-band |
| LO Stability | Phase Locked to External Reference at 10MHz |
| Noise Figure | 0.8 dB |
| Input Frequency - Band 1 | Ku-Band: 11.70 - 12.75 GHz |
| Output Frequency 1 | L-Band: 950 - 2000 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 10.75 GHz |
| Phase Noise @ 1KHz offset | -70 dBc/Hz |
| Phase Noise @ 10KHz offset | -80 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 60 dB typ |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 12 - 24 V |
| Current Drain | 250 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-75 waveguide grooved |
| RF Output Connector | N-50 Ohm |
| M & C SPECIFICATIONS | |
| LED Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Humidity | 0 - 95% |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 128 x 60 x 40 mm |
| Weight | 450 g |
