Norsat International Inc.

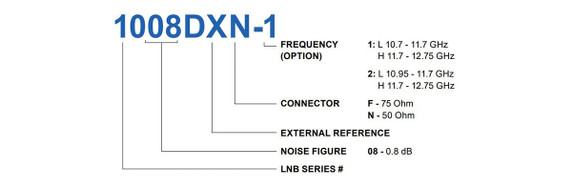

Norsat 1000 Series 1008DXF-2 Ku-Band Simultaneous-Band LNB
Product Code:
1008DXF-2
Availability:
YES
Weight:
0.30 KGS
Width:
4.00
(cm)
Height:
4.00
(cm)
Depth:
15.50
(cm)
$2,048.00
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. KU-BAND SIMUL-BAND PLL LNB; EXT REF 10MHZ; L: 10.95-11.70GHZ; H: 11.70-12.75GHZ; NF: 0.8DB; F-CONN
| KEY SPECIFICATIONS | |
| Product Family | 1000 Series |
| Band | Ku-Band |
| LO Type | External |
| # of onboard LOs | Simultaneous-band |
| LO Stability | Phase Locked to External Reference |
| Noise Figure | 0.8 dB |

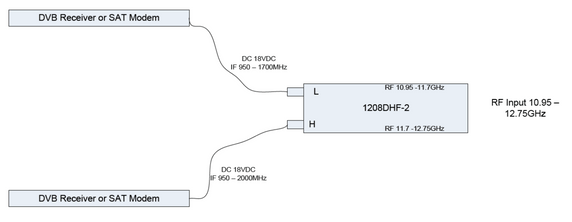

| Input Frequency - Band 1 | Ku-band:10.95 - 11.7 GHz(L); 11.7 -12.75 GHz(H) |
| Output Frequency 1 | L-Band: 950 - 1700 MHz(L); 950-2000 MHz(H) |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 10.00 GHz(L); 10.75 GHz(H) |
| Phase Noise @ 1KHz offset | Depends on External Reference |
| Phase Noise @ 10KHz offset | Depends on External Reference |
| Phase Noise @ 100KHz offset | Depends on External Reference |
| Conversion Gain | 55 dB typ |
| Input VSWR | 2.2 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 13 - 20 V |
| Current Drain | 450 mA max. |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-75 waveguide grooved |
| RF Output Connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 155 x 40 x 40 mm |
| Weight | 300 g |
5 customers are viewing this product
Details
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. KU-BAND SIMUL-BAND PLL LNB; EXT REF 10MHZ; L: 10.95-11.70GHZ; H: 11.70-12.75GHZ; NF: 0.8DB; F-CONN
| KEY SPECIFICATIONS | |
| Product Family | 1000 Series |
| Band | Ku-Band |
| LO Type | External |
| # of onboard LOs | Simultaneous-band |
| LO Stability | Phase Locked to External Reference |
| Noise Figure | 0.8 dB |
| Input Frequency - Band 1 | Ku-band:10.95 - 11.7 GHz(L); 11.7 -12.75 GHz(H) |
| Output Frequency 1 | L-Band: 950 - 1700 MHz(L); 950-2000 MHz(H) |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 10.00 GHz(L); 10.75 GHz(H) |
| Phase Noise @ 1KHz offset | Depends on External Reference |
| Phase Noise @ 10KHz offset | Depends on External Reference |
| Phase Noise @ 100KHz offset | Depends on External Reference |
| Conversion Gain | 55 dB typ |
| Input VSWR | 2.2 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 5 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 13 - 20 V |
| Current Drain | 450 mA max. |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-75 waveguide grooved |
| RF Output Connector | F-75 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Dimensions (L x W x H) | 155 x 40 x 40 mm |
| Weight | 300 g |
