Norsat International Inc.
Norsat 1000 Series 1008DXF-1 Ku-Band Simultaneous-Band LNB
Product Code:
1008DXF-1
Availability:
YES
Weight:
0.30 KGS
Width:
4.00
(cm)
Height:
4.00
(cm)
Depth:
15.50
(cm)
$2,048.00
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ku-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. KU-BAND SIMUL-BAND PLL LNB; EXT REF 10MHZ; L: 10.70-11.70GHZ; H: 11.70-12.75GHZ; NF: 0.8DB; F-CONN
Noise Figure 0.8 dB typ., 0.85 dB max. at room temp @ CF
L.O. Stability Phase Locked to External Reference
Phase Noise (SSB) max. Depends on External Reference
Input VSWR 2.2 : 1 max.
Output VSWR 2.0 : 1 max.
Gain 55 dB typ., 50 dB min., 62 dB max.
Gain Flatness ≤ 4 dB p-p
(over full band)
Output P1dB + 5 dBm min
DC Power + 13V to + 20V DC
Current 450 mA max.
Input (waterproof) WR-75 waveguide grooved
Output (waterproof) F-Connector (75 Ohm)
N-Connector (50 Ohm)

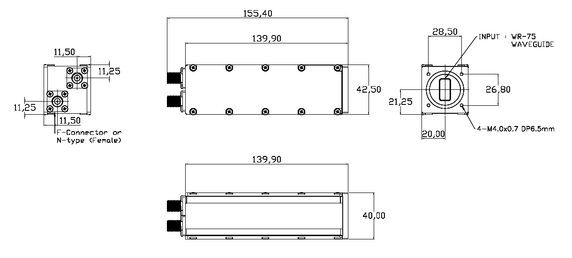

Dimensions (L x W x H) 155mm x 40 mm x 40 mm
(6.10 in x 1.57 in x 1.57 in)
Weight 300 g (10.58 oz)
Operating Temperature - 40 to + 60˚C
Storage Temperature - 40 to + 80°C
External Ref Freq 10 MHz (sine-wave), - 10 to 0 dBm

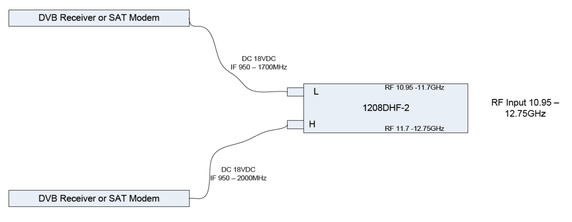

Option 1 Option 2
Frequency Band (GHz) L 10.7 - 11.7 10.95 - 11.7
H 11.7 - 12.75 11.7 - 12.75
L.O. Frequency (GHz) L 9.75 10.00
H 10.75 10.75
IF Frequency (MHz) L 950 - 1950 950 - 1700
H 950 - 2000 950 - 2000
