Norsat International Inc.

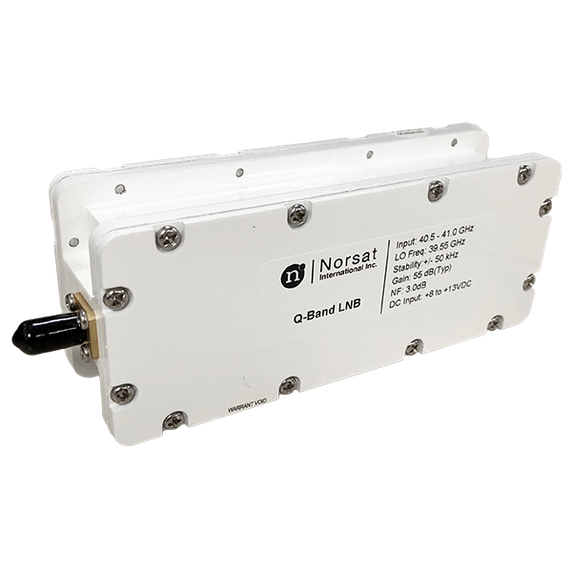

Norsat Q1000HF Q-Band Single Band PLL LNB
Product Code:
Q1000HF
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.70 KGS
Width:
5.50
(cm)
Height:
3.90
(cm)
Depth:
14.60
(cm)
$10,306.00
Norsat’s Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Q-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industry’s leading provider of high performance LNBs.
| KEY SPECIFICATIONS | |
| Band | Q-Band |
| Input Frequency Band 1 | 40.50 - 41.00 GHz |
| LO Frequency 1 | 39.55 GHz |
| LO Stability | ±50 kHz |
| LO Type | PLL |
| Noise Figure Max | 3 dB |
| Number Of Onboard Los | Single-Band |
| Output Frequency Band 1 | 950 - 1450 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 60 dB |
| Conversion Gain Min | 50 dB |
| Gain Flatness (Over Full Band) | ≤ 3 dB p-p max. |
| Input VSWR | 2.0 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 1.8 : 1 max. |
| Phase Noise 100Khz Offset Max | -90 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 1000 mA max. |
| Power Requirements | +8 to +13V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-22 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +50°C |
| Temperature Storage | -40 to +80°C |

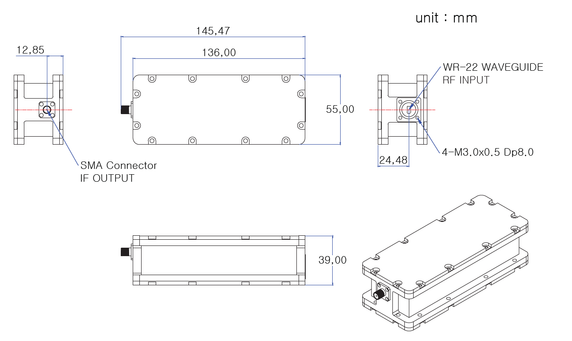

| PHYSICAL SPECIFICATIONS | |
| Product Height | 39 mm |
| Product Length | 146 mm |
| Product Weight | 0.7 kg |
| Product Width | 55 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.44 kg |
| Aluminium Total Value | $ 1.1 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 146 x 55 x 39 mm |
| Unit Package Height | 39 mm |
| Unit Package Length | 146 mm |
| Unit Package Width | 55 mm |
| Warranty | 3 years |
