Norsat International Inc.

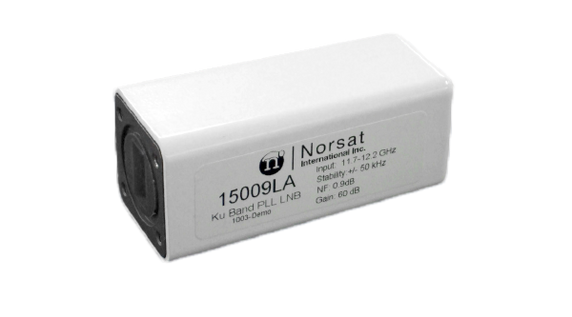

Norsat 1000 Series 15007LBF Ku-Band LNB
Product Code:
15007LBF
Condition:
New
Availability:
YES
Weight:
0.30 KGS
Width:
4.20
(cm)
Height:
4.20
(cm)
Depth:
11.00
(cm)
$319.00
Norsat 1000 Series 15007LBF Ku-Band LNB
Typical Specifications
Noise figure 0.7 to 0.9 dB depending on model number
L.O. stability ±50 kHz (over temperature excl offset)
Phase noise -65 dBc/Hz at 1kHz
(SSB) -75 dBc/Hz at 10kHz
-85 dBc/Hz at 100kHz
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Noise figure 0.7 to 0.9 dB depending on model number
L.O. stability ±50 kHz (over temperature excl offset)
Phase noise -65 dBc/Hz at 1kHz
(SSB) -75 dBc/Hz at 10kHz
-85 dBc/Hz at 100kHz
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Conversion gain 62 dB
Output P1dB 6 dBm
Power requirements +15 to +24 V supplied through
center conductor of IF cable
Current drain 170 mA
Input Waveguide WR75
Dimensions 110 (L) x 42 (W) x 42 (H) mm
(4.3 x 1.7 x 1.7 in)
Weight 300g / 10.6 oz
Temperature Range -40°C to + 60°C
Output P1dB 6 dBm
Power requirements +15 to +24 V supplied through
center conductor of IF cable
Current drain 170 mA
Input Waveguide WR75
Dimensions 110 (L) x 42 (W) x 42 (H) mm
(4.3 x 1.7 x 1.7 in)
Weight 300g / 10.6 oz
Temperature Range -40°C to + 60°C

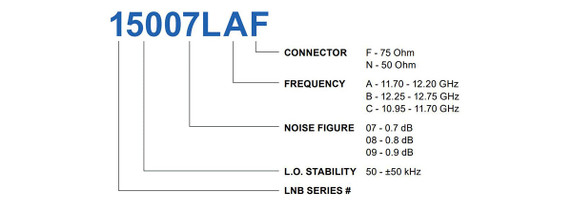

FREQUENCY BANDS AVAILABLE
Typical service 15000LA 15000LB 15000LC
Input frequency (GHz) 11.70 to 12.20 12.25 to 12.75 10.95 to 11.70
L.O. frequency (GHz) 10.75 11.30 10.00
Output frequency (MHz) 950 to 1450 950 to 1450 950 to 1700
Typical service 15000LA 15000LB 15000LC
Input frequency (GHz) 11.70 to 12.20 12.25 to 12.75 10.95 to 11.70
L.O. frequency (GHz) 10.75 11.30 10.00
Output frequency (MHz) 950 to 1450 950 to 1450 950 to 1700
5 customers are viewing this product
Details
Norsat 1000 Series 15007LBF Ku-Band LNB
Typical Specifications
Noise figure 0.7 to 0.9 dB depending on model number
L.O. stability ±50 kHz (over temperature excl offset)
Phase noise -65 dBc/Hz at 1kHz
(SSB) -75 dBc/Hz at 10kHz
-85 dBc/Hz at 100kHz
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Noise figure 0.7 to 0.9 dB depending on model number
L.O. stability ±50 kHz (over temperature excl offset)
Phase noise -65 dBc/Hz at 1kHz
(SSB) -75 dBc/Hz at 10kHz
-85 dBc/Hz at 100kHz
Input VSWR 2.0 : 1
Output VSWR 2.0 : 1
Conversion gain 62 dB
Output P1dB 6 dBm
Power requirements +15 to +24 V supplied through
center conductor of IF cable
Current drain 170 mA
Input Waveguide WR75
Dimensions 110 (L) x 42 (W) x 42 (H) mm
(4.3 x 1.7 x 1.7 in)
Weight 300g / 10.6 oz
Temperature Range -40°C to + 60°C
Output P1dB 6 dBm
Power requirements +15 to +24 V supplied through
center conductor of IF cable
Current drain 170 mA
Input Waveguide WR75
Dimensions 110 (L) x 42 (W) x 42 (H) mm
(4.3 x 1.7 x 1.7 in)
Weight 300g / 10.6 oz
Temperature Range -40°C to + 60°C
FREQUENCY BANDS AVAILABLE
Typical service 15000LA 15000LB 15000LC
Input frequency (GHz) 11.70 to 12.20 12.25 to 12.75 10.95 to 11.70
L.O. frequency (GHz) 10.75 11.30 10.00
Output frequency (MHz) 950 to 1450 950 to 1450 950 to 1700
Typical service 15000LA 15000LB 15000LC
Input frequency (GHz) 11.70 to 12.20 12.25 to 12.75 10.95 to 11.70
L.O. frequency (GHz) 10.75 11.30 10.00
Output frequency (MHz) 950 to 1450 950 to 1450 950 to 1700
Download
| Download Name | |
| Norsat 1000 Series 15007LBF Ku-Band LNB Data Sheet | |
