Norsat International Inc.
Norsat 1000-100104 1000 Dual-Band Ku-Band Ext REF LNB, FS33446
Product Code:
1000-100104
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.40 KGS
Width:
6.00
(cm)
Height:
4.00
(cm)
Depth:
12.80
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Colour | FS33446 |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 10.70 - 11.70 GHz |
| Input Frequency Band 2 | 11.70 - 12.75 GHz |
| LO Frequency 1 | 9.75 GHz |
| LO Frequency 2 | 10.60 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 0.9 dB |
| Noise Figure Typ | 0.8 dB |
| Of Onboard Los | Dual-band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| Output Frequency Band 2 | 1100 - 2150 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 18V / No Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p |
| Input VSWR | 2.3 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 1Khz Offset Max | Depends on External Reference |
| Phase Noise 10Khz Offset Max | Depends on External Reference |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +80°C |

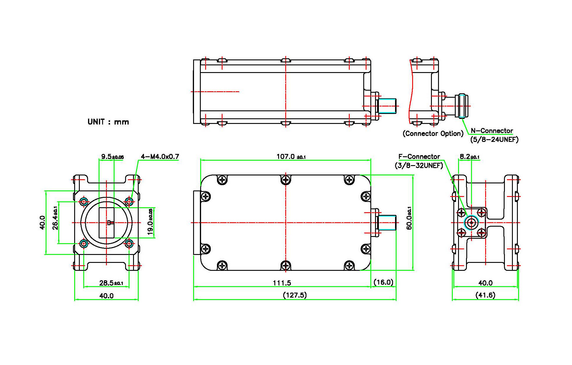

| PHYSICAL SPECIFICATIONS | |
| Product Height | 40 mm |
| Product Length | 128 mm |
| Product Weight | 0.4 kg |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.284 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.71 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Unit Package Height | 65 mm |
| Unit Package Length | 145 mm |
| Unit Package Width | 95 mm |
| Warranty | 3 years |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Colour | FS33446 |
| External Ref Freq | 10 MHz (sine-wave), - 5 to +5 dBm |
| Input Frequency Band 1 | 10.70 - 11.70 GHz |
| Input Frequency Band 2 | 11.70 - 12.75 GHz |
| LO Frequency 1 | 9.75 GHz |
| LO Frequency 2 | 10.60 GHz |
| LO Stability | Ext Ref |
| LO Type | EXT |
| Noise Figure Max | 0.9 dB |
| Noise Figure Typ | 0.8 dB |
| Of Onboard Los | Dual-band |
| Output Frequency Band 1 | 950 - 1950 MHz |
| Output Frequency Band 2 | 1100 - 2150 MHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 18V / No Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p |
| Input VSWR | 2.3 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| Phase Noise 1Khz Offset Max | Depends on External Reference |
| Phase Noise 10Khz Offset Max | Depends on External Reference |
| Phase Noise 100Khz Offset Max | Depends on External Reference |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 350 mA |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| Temperature Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 40 mm |
| Product Length | 128 mm |
| Product Weight | 0.4 kg |
| Product Width | 60 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.284 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.71 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Unit Package Height | 65 mm |
| Unit Package Length | 145 mm |
| Unit Package Width | 95 mm |
| Warranty | 3 years |
