Norsat International Inc.
Norsat 1000-100102 1000 Ku-Band Simultaneous Band Auto Ref PLL LNB
Product Code:
1000-100102
Condition:
New
Availability:
6 - 8 Weeks
Weight:
0.45 KGS
Width:
5.00
(cm)
Height:
4.00
(cm)
Depth:
16.33
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz, -5 to +5 dBm |

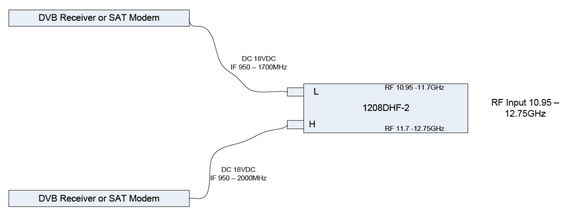

| Input Frequency Band 1 | L: 10.95 - 11.70 GHz |
| Input Frequency Band 2 | H: 11.70 - 12.75 GHz |
| LO Frequency 1 | L: 10.00 GHz |
| LO Frequency 2 | H: 10.75 GHz |
| LO Type | PLL |
| Noise Figure Max | 0.9 dB |
| Noise Figure Typ | 0.8 dB |
| Number Of Onboard Los | Simultaneous-Band |
| Output Frequency Band 1 | L: 950 - 1700 MHz |
| Output Frequency Band 2 | H: 950 - 2000 MHz |
| Reference | Auto-Reference (Internal Reference if no External Reference Detected) |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 62 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness (Over Any 36Mhz) | ≤ 1 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Image Rejection | 50 dBc min. |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 450 mA max. (each band) |
| Power Requirements | +12 to +24V DC (each band) |
| INTERFACE SPECIFICATIONS | |
| External Ref Input Port | IF connector (each band) |
| IF Connector | N-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |

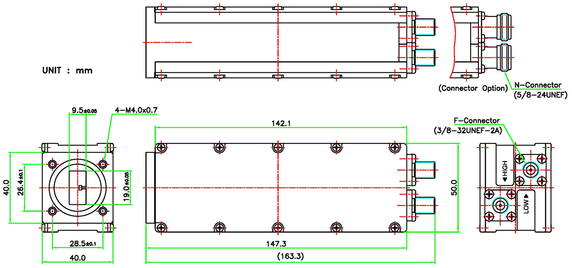

| PHYSICAL SPECIFICATIONS | |
| Product Height | 40 mm |
| Product Length | 163.3 mm |
| Product Weight | 0.45 kg |
| Product Width | 50 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.298 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.745 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 65 mm |
| Package Length Case 1 | 145 mm |
| Package Width Case 1 | 95 mm |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Warranty | 1 year |
5 customers are viewing this product
Details
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| External Ref Freq | 10 MHz, -5 to +5 dBm |
| Input Frequency Band 1 | L: 10.95 - 11.70 GHz |
| Input Frequency Band 2 | H: 11.70 - 12.75 GHz |
| LO Frequency 1 | L: 10.00 GHz |
| LO Frequency 2 | H: 10.75 GHz |
| LO Type | PLL |
| Noise Figure Max | 0.9 dB |
| Noise Figure Typ | 0.8 dB |
| Number Of Onboard Los | Simultaneous-Band |
| Output Frequency Band 1 | L: 950 - 1700 MHz |
| Output Frequency Band 2 | H: 950 - 2000 MHz |
| Reference | Auto-Reference (Internal Reference if no External Reference Detected) |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 62 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness (Over Any 36Mhz) | ≤ 1 dB p-p |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Image Rejection | 50 dBc min. |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.2 : 1 max. |
| Phase Noise 1Khz Offset Max | -70 dBc/Hz |
| Phase Noise 10Khz Offset Max | -80 dBc/Hz |
| Phase Noise 100Khz Offset Max | -95 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 450 mA max. (each band) |
| Power Requirements | +12 to +24V DC (each band) |
| INTERFACE SPECIFICATIONS | |
| External Ref Input Port | IF connector (each band) |
| IF Connector | N-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| IP Rating | IP 67 |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 40 mm |
| Product Length | 163.3 mm |
| Product Weight | 0.45 kg |
| Product Width | 50 mm |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.298 kg |
| Aluminium COO | KR |
| Aluminium Total Value | $ 0.745 |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
| Package Height Case 1 | 65 mm |
| Package Length Case 1 | 145 mm |
| Package Width Case 1 | 95 mm |
| Unit Package Dimensions | 145 x 95 x 65 mm |
| Warranty | 1 year |
