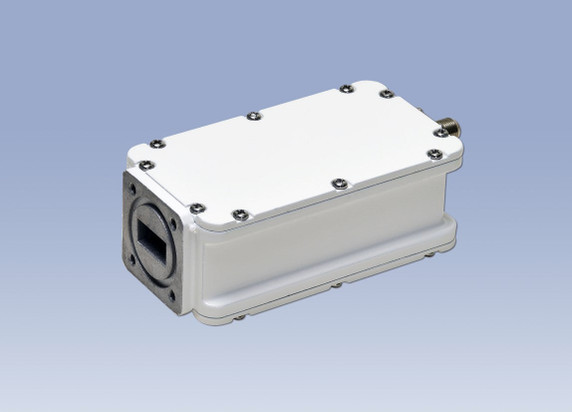

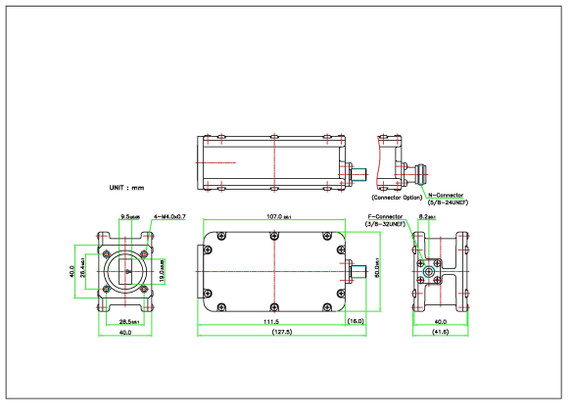

Norsat 1000-100099 Ku-Band LNB
Product Code:
1000-100099
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.40 KGS
Width:
6.00
(cm)
Height:
4.16
(cm)
Depth:
11.15
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | 10.70 - 12.2 GHz |
| LO Frequency 1 | 9.75 GHz |
| Noise Figure Max | 1.0 dB |
| Output Frequency Band | 950 - 2450 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 50 dB |
| Conversion Gain Typ | 55 dB |
| Gain Flatness | 7 dB p-p max. |
| Gain Flatness At -40 To +60℃ | 8 dB p-p max. |
| Gain Ripple At Per 27Mhz | 1dB p-p max. |
| Image Rejection | 40dBc min. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.5 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | +12 to +24V DC |
| Required Current | 350mA max. |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| M AND C SPECIFICATIONS | |
| Led Indicators | None |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 41.6 mm |
| Product Length | 111.5 mm |
| Product Weight | 0.4 kg |
| Product Width | 60 mm |
| Waterproof | IP67 |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Harmonized System Code | 8517690000 |
