Norsat International Inc.

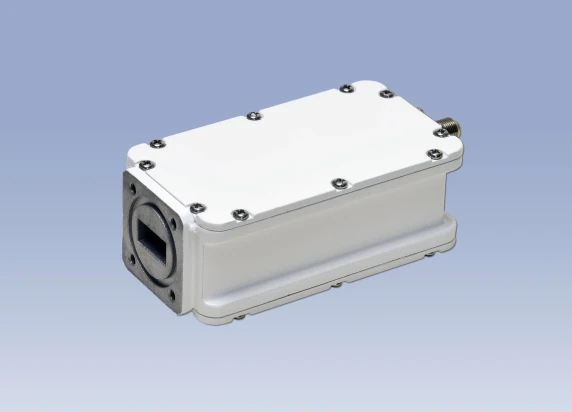

Norsat 1000-100097 1000 Ku-Band Simultaneous Band PLL LNB
Product Code:
1000-100097
Condition:
New
Availability:
10 - 12 Weeks
Weight:
0.45 KGS
Width:
4.20
(cm)
Height:
4.04
(cm)
Depth:
13.93
(cm)
$0.00
| KEY SPECIFICATIONS | |
| Band | Ku-Band |
| Input Frequency Band 1 | L:10.70 - 11.70 GHz |
| Input Frequency Band 2 | H: 11.70 - 12.75 GHz |
| LO Frequency 1 | L: 9.75 GHz |
| LO Frequency 2 | H: 10.75 GHz |
| LO Type | PLL |
| Noise Figure Max | 0.85 dB |
| Noise Figure Typ | 0.8 dB |
| Number Of Onboard Los | Simultaneous-Band |
| Output Frequency Band 1 | L: 950 - 1950 MHz |
| Output Frequency Band 2 | H: 950 - 2000 MHz |
| RF SPECIFICATIONS | |
| Conversion Gain Max | 50 dB |
| Conversion Gain Min | 40 dB |
| Conversion Gain Typ | 45 dB |
| Gain Flatness (Over Full Band) | ≤ 4 dB p-p |
| Input VSWR | 2.2 : 1 max. |
| Output P1db | + 5 dBm min. |
| Output VSWR | 2.0 : 1 max. |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 450 mA max. (Each Band) |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | N-Connector |
| RF Input Connector | WR-75 waveguide grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature Operational | -40 to +60°C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 40.4 mm |
| Product Length | 139.3 mm |
| Product Weight | 0.45 kg |
| Product Width | 42 mm |
| ADDITIONAL INFORMATION | |
| Country Of Origin | Made in the Republic of Korea |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Harmonized System Code | 8517690000 |
