Nisshinbo

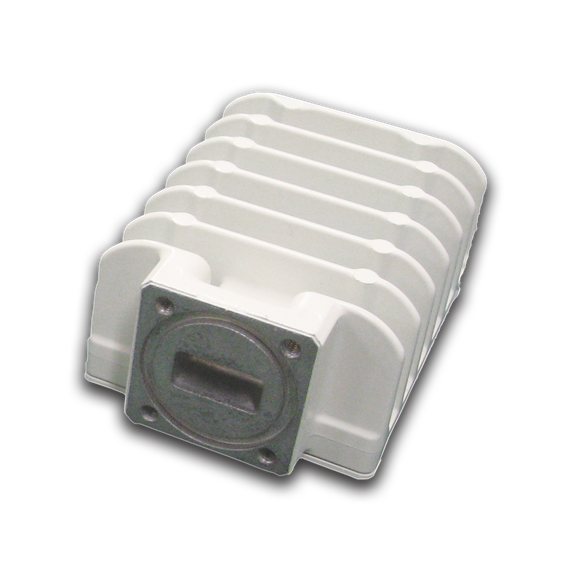

Nisshinbo NJT8301N Standard Ku-band 1.5W BUC 14.0 - 14.5 GHz, N-Connector
Product Code:
NJT8301N
Condition:
New
Availability:
YES
Weight:
0.35 KGS
Width:
9.15
(cm)
Height:
4.25
(cm)
Depth:
6.80
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.315.9545
Specifications — NJT8301N
| IF Interface Connector | N-type (50 ohms), Female Connector |
| RF Frequency | Standard Ku-band (14.0 to 14.5 GHz) |
About the NJT8301U series
The table above lists the specifications of this exact item (NJT8301N). The manufacturer's text below describes the whole NJT8301U series and may quote values that belong to other models in it.
Nisshinbo NJT8301U series Universal Ku-band 1.5W BUC
Features
Frequency Organization
- RF Frequency: 13.75 to 14.5 GHz
- IF Frequency: 950 to 1,700 MHz
- LO Frequency: 12.8 GHz
High Efficiency & Low Distortion Output Power
- P1dB: +31 dBm min. over temperature
- ACPR: -26 dBc @ Pout = +31 dBm
- Power Consumption: 12 W
Small Size & Light Weight
- Weight: 350 g
Others
- RoHS Compliance
| Items | Parameters | ||
|---|---|---|---|
| RF Output Interface | Waveguide, WR75 (with Groove) | ||
| IF Input Interface | Coax. Connector, N-type Female (50 Ω) | ||
| RF Frequency | 13.75 to 14.5 GHz | ||
| IF Frequency | 950 to 1,700 MHz | ||
| LO Frequency | 12.8 GHz | ||
| P1dB Output Power | +31 dBm min. over temperature (@ 1dB G.C.P.) | ||
| ACPR | -26 dBc typ. @ Pout = +31 dBm | ||
| Linear Gain | 55 dB typ., 48 dB min. | ||
| Input Power Voltage Requirement | +24 VDC (+12 to +30 VDC) | ||
| Power Consumption @ P1dB | 12 W typ., 14 W max. | ||
| Operating Temperature Range | -40 to +55 ℃ | ||
| Waterproof / Dustproof (IP-code) | IP67 | ||
| Weight | 350 g | ||
| Dimensions | (L) 91.55 x (W) 68 x (H) 42.5 mm (w/o Interfaces & Screws) | ||
5 customers are viewing this product
Details
Specifications — NJT8301N
| IF Interface Connector | N-type (50 ohms), Female Connector |
| RF Frequency | Standard Ku-band (14.0 to 14.5 GHz) |
About the NJT8301U series
The table above lists the specifications of this exact item (NJT8301N). The manufacturer's text below describes the whole NJT8301U series and may quote values that belong to other models in it.
Nisshinbo NJT8301U series Universal Ku-band 1.5W BUC
Features
Frequency Organization
- RF Frequency: 13.75 to 14.5 GHz
- IF Frequency: 950 to 1,700 MHz
- LO Frequency: 12.8 GHz
High Efficiency & Low Distortion Output Power
- P1dB: +31 dBm min. over temperature
- ACPR: -26 dBc @ Pout = +31 dBm
- Power Consumption: 12 W
Small Size & Light Weight
- Weight: 350 g
Others
- RoHS Compliance
| Items | Parameters | ||
|---|---|---|---|
| RF Output Interface | Waveguide, WR75 (with Groove) | ||
| IF Input Interface | Coax. Connector, N-type Female (50 Ω) | ||
| RF Frequency | 13.75 to 14.5 GHz | ||
| IF Frequency | 950 to 1,700 MHz | ||
| LO Frequency | 12.8 GHz | ||
| P1dB Output Power | +31 dBm min. over temperature (@ 1dB G.C.P.) | ||
| ACPR | -26 dBc typ. @ Pout = +31 dBm | ||
| Linear Gain | 55 dB typ., 48 dB min. | ||
| Input Power Voltage Requirement | +24 VDC (+12 to +30 VDC) | ||
| Power Consumption @ P1dB | 12 W typ., 14 W max. | ||
| Operating Temperature Range | -40 to +55 ℃ | ||
| Waterproof / Dustproof (IP-code) | IP67 | ||
| Weight | 350 g | ||
| Dimensions | (L) 91.55 x (W) 68 x (H) 42.5 mm (w/o Interfaces & Screws) | ||
