Iridium

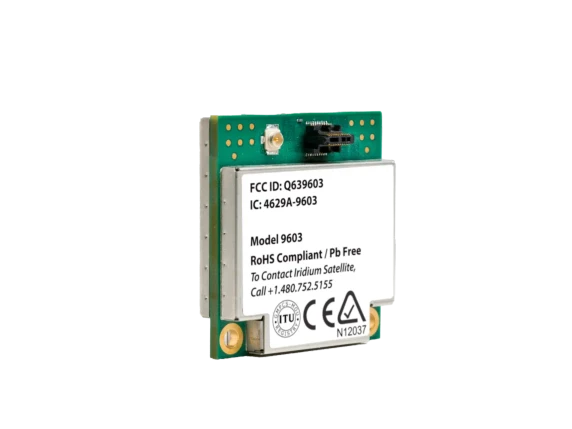

Iridium 9603 Enhanced Short Burst Data (ESBD) Module (for U.S. Government)
Product Code:
IR-9603-M
Condition:
New
Weight:
0.10 KGS
Width:
2.96
(cm)
Height:
0.81
(cm)
Depth:
3.15
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
The Iridium 9603 ESBD module provides optimal transmission security (TRANSEC) for warfighters and support staff.
- Drop-in replacement for Iridium 9603 Short Burst Data® (SBD®) module
- AES-256 encryption
- Eligible for Enhanced Mobile Satellite Services (EMSS) contract through U.S. Space Force & Commercial Satellite Communications Office
The Iridium 9603 ESBD provides greater security and on-air performance compared to the existing Iridium 9603 SBD module.
Encryption
AES-256 encrypted payload and metadata, including module identifiers and geolocation
Larger Payloads
12x greater maximum mobile-originated (MO) and 15x greater maximum mobile-terminated (MT) message sizes
Increased Transfer Rates
Lower on-air time for payloads greater than 70 bytes reduces the likelihood of interception
Longer Battery Life
No re-transmission of acknowledged data
EMSS Eligible
Access unlimited narrowband data through Enhanced Mobile Satellite Services (EMSS), a multi-year contract between Iridium and the U.S. Space Force.
| Product Specifications | |
| Mechanical | |
| Dimensions (L x W x H) | 31.5mm x 29.6mm x 8.1mm |
| Weight | 11.4 g |
| Environmental | |
| Operating Temperature Range | -40 to +85 ℃ |
| Operating Humidity Range | ≤75 % RH |
| Storage Temperature Range | 40 to +85 ℃ |
| Storage Humidity Range | ≤93 % RH |
| Vibration Standard | EN60068-2-14:2009, IEC60068-2-64:2008, EN60068-2-27:2009, and SAE J1455 |
| RF Interface | |
| Duplexing Method | TDD (Time Domain Duplex) |
| I / O Impedence | 50 Ohm |
| Multiplexing Method | TDMA/FDMA |
| Power | |
| Input Voltage Range | 5.0V +/- .5V DC |
| Input Voltage Ripple | <40mV pp |
| Idle Current Average | 34 average mA |
| Idle Current Peak | 156 peak mA |
| Transmit Current Average | 145 average mA |
| Transmit Current Peak | 1.3 peak A |
| Receive Current Average | 39 average mA |
| Receive Current Peak | 156 peak mA |
| Message Transfer Current | 158 average mA |
| Message Transfer Power | 0.8 average W |
| Network | |
| Telephony | No |
| Location Based Services | No |
| User Experience | |
| GEOS Support | No |
5 customers are viewing this product
Details
The Iridium 9603 ESBD module provides optimal transmission security (TRANSEC) for warfighters and support staff.
- Drop-in replacement for Iridium 9603 Short Burst Data® (SBD®) module
- AES-256 encryption
- Eligible for Enhanced Mobile Satellite Services (EMSS) contract through U.S. Space Force & Commercial Satellite Communications Office
The Iridium 9603 ESBD provides greater security and on-air performance compared to the existing Iridium 9603 SBD module.
Encryption
AES-256 encrypted payload and metadata, including module identifiers and geolocation
Larger Payloads
12x greater maximum mobile-originated (MO) and 15x greater maximum mobile-terminated (MT) message sizes
Increased Transfer Rates
Lower on-air time for payloads greater than 70 bytes reduces the likelihood of interception
Longer Battery Life
No re-transmission of acknowledged data
EMSS Eligible
Access unlimited narrowband data through Enhanced Mobile Satellite Services (EMSS), a multi-year contract between Iridium and the U.S. Space Force.
| Product Specifications | |
| Mechanical | |
| Dimensions (L x W x H) | 31.5mm x 29.6mm x 8.1mm |
| Weight | 11.4 g |
| Environmental | |
| Operating Temperature Range | -40 to +85 ℃ |
| Operating Humidity Range | ≤75 % RH |
| Storage Temperature Range | 40 to +85 ℃ |
| Storage Humidity Range | ≤93 % RH |
| Vibration Standard | EN60068-2-14:2009, IEC60068-2-64:2008, EN60068-2-27:2009, and SAE J1455 |
| RF Interface | |
| Duplexing Method | TDD (Time Domain Duplex) |
| I / O Impedence | 50 Ohm |
| Multiplexing Method | TDMA/FDMA |
| Power | |
| Input Voltage Range | 5.0V +/- .5V DC |
| Input Voltage Ripple | <40mV pp |
| Idle Current Average | 34 average mA |
| Idle Current Peak | 156 peak mA |
| Transmit Current Average | 145 average mA |
| Transmit Current Peak | 1.3 peak A |
| Receive Current Average | 39 average mA |
| Receive Current Peak | 156 peak mA |
| Message Transfer Current | 158 average mA |
| Message Transfer Power | 0.8 average W |
| Network | |
| Telephony | No |
| Location Based Services | No |
| User Experience | |
| GEOS Support | No |
