Haivision

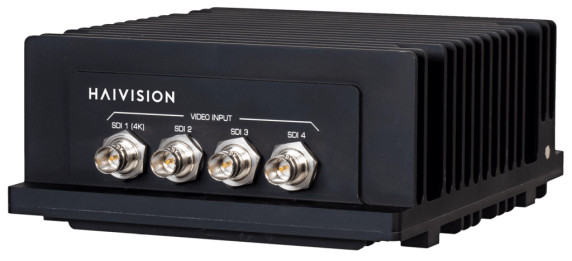

Haivision Makito X4 Rugged Video Encoder
Product Code:
S-MX4E-R-SDI4
Condition:
New
Weight:
1.93 KGS
Width:
14.60
(cm)
Height:
6.80
(cm)
Depth:
18.60
(cm)
Request a quote at Contact@orbitalconnect.com or +1.888.218.9394
A compact, rugged, quad-input H.264 & HEVC video encoder for real-time delivery of motion imagery for ISR platforms.
ISR Encoding in a Rugged Package from Haivision Designed for the most demanding environments, the Makito X4 Rugged delivers high-quality, low latency AVC/H.264 and HEVC/H.265 video from analog and digital sources with resolutions up to 3840x2160p60 (4K UHD). Compliance with KLV and CoT metadata standards ensures that interoperability is achieved within a small form factor and all-weather MIL-STD810G/DO-160 appliance.
Flexible Video from SD to 4K, Analog and Digital The Makito X4 Rugged offers the flexibility to ingest video from a broad range of video sensors. With its four BNC inputs the Makito X4 Rugged can accept up to four CVBS composite video sources, four 3G-SDI HD sources or a 12G-SDI input for encoding with resolutions up to 4K including in HDR.
Low Latency, High Quality Streaming The Makito X4 Rugged provides exceptional picture quality at very low bitrates with ultra low encode latency, making it ideal for real-time situational awareness. With support for HEVC, the Makito X4 Rugged provides increased quality at lower bit-rates compared to H.264, ensuring that downstream exploitation systems receive the best video possible, even over constrained IP networks, line of sight (LOS) and satellite links.
Maximum Processing Power With eight encoding cores capable of either H.264 or HEVC video compression at SD, HD and UHD resolutions, the Makito X4 Rugged can encode each input multiple times for dissemination to different downstream systems. For example, platforms can deliver a 6Mbps H.264 stream for LOS links and a 120kbps HEVC stream for SATCOM from the same input simultaneously.
KLV Metadata MISB-compliant Key-Length-Value (KLV) and Cursor-on-Target (CoT) metadata transport within an MPEG-2 transport stream ensures interoperability with downstream users. Real-time metadata, captured via serial, Ethernet, or SDI, may be transported using the MISB 0604 defined asynchronous or synchronous formats. Additionally, metadata filtering can optimize bandwidth utilization for video content.
SWaP Optimized The Makito X4 Rugged is a small, light-weight and low power consumption encoder, making it suitable for the most stringent size, weight, and power requirements in mobile or fixed platforms.
| FEATURES | BENEFITS |
| HEVC & H.264 Encoding | Exceptional picture quality up to 4K and in HDR at low bitrates even over bandwidth constrained networks. |
| Ultra Low Latency | Respond in real-time to mission-critical video information. |
| Metadata Filtering | Enable low bitrate streaming through KLV filtering. |
| Dual Network Interfaces | Configurable separation of management and streaming networks as well as hitless failover over more than datalink. |
| Performance in a Compact Form-factor | Multi-channel encoding in a small, low power appliance which can be embedded within both mobile and fixed platforms. |
| Multi-bitrate Streaming | 8 encoding cores and stream replication delivers the best video to the right viewers over any network. |
| NATO STANAG 4609 & MISB Compliant | Ensures interoperability amongst coalition forces and partners. |
| Fully Ruggedized | DO-160 / MIL-STD-810G / MIL-STD-1275E all weather design for airborne, ship and ground-based platforms. |
5 customers are viewing this product
Details
A compact, rugged, quad-input H.264 & HEVC video encoder for real-time delivery of motion imagery for ISR platforms.
ISR Encoding in a Rugged Package from Haivision Designed for the most demanding environments, the Makito X4 Rugged delivers high-quality, low latency AVC/H.264 and HEVC/H.265 video from analog and digital sources with resolutions up to 3840x2160p60 (4K UHD). Compliance with KLV and CoT metadata standards ensures that interoperability is achieved within a small form factor and all-weather MIL-STD810G/DO-160 appliance.
Flexible Video from SD to 4K, Analog and Digital The Makito X4 Rugged offers the flexibility to ingest video from a broad range of video sensors. With its four BNC inputs the Makito X4 Rugged can accept up to four CVBS composite video sources, four 3G-SDI HD sources or a 12G-SDI input for encoding with resolutions up to 4K including in HDR.
Low Latency, High Quality Streaming The Makito X4 Rugged provides exceptional picture quality at very low bitrates with ultra low encode latency, making it ideal for real-time situational awareness. With support for HEVC, the Makito X4 Rugged provides increased quality at lower bit-rates compared to H.264, ensuring that downstream exploitation systems receive the best video possible, even over constrained IP networks, line of sight (LOS) and satellite links.
Maximum Processing Power With eight encoding cores capable of either H.264 or HEVC video compression at SD, HD and UHD resolutions, the Makito X4 Rugged can encode each input multiple times for dissemination to different downstream systems. For example, platforms can deliver a 6Mbps H.264 stream for LOS links and a 120kbps HEVC stream for SATCOM from the same input simultaneously.
KLV Metadata MISB-compliant Key-Length-Value (KLV) and Cursor-on-Target (CoT) metadata transport within an MPEG-2 transport stream ensures interoperability with downstream users. Real-time metadata, captured via serial, Ethernet, or SDI, may be transported using the MISB 0604 defined asynchronous or synchronous formats. Additionally, metadata filtering can optimize bandwidth utilization for video content.
SWaP Optimized The Makito X4 Rugged is a small, light-weight and low power consumption encoder, making it suitable for the most stringent size, weight, and power requirements in mobile or fixed platforms.
| FEATURES | BENEFITS |
| HEVC & H.264 Encoding | Exceptional picture quality up to 4K and in HDR at low bitrates even over bandwidth constrained networks. |
| Ultra Low Latency | Respond in real-time to mission-critical video information. |
| Metadata Filtering | Enable low bitrate streaming through KLV filtering. |
| Dual Network Interfaces | Configurable separation of management and streaming networks as well as hitless failover over more than datalink. |
| Performance in a Compact Form-factor | Multi-channel encoding in a small, low power appliance which can be embedded within both mobile and fixed platforms. |
| Multi-bitrate Streaming | 8 encoding cores and stream replication delivers the best video to the right viewers over any network. |
| NATO STANAG 4609 & MISB Compliant | Ensures interoperability amongst coalition forces and partners. |
| Fully Ruggedized | DO-160 / MIL-STD-810G / MIL-STD-1275E all weather design for airborne, ship and ground-based platforms. |
Download
| Download Name | |
| Haivision Makito X4 Rugged Video Encoder Datasheet | |
