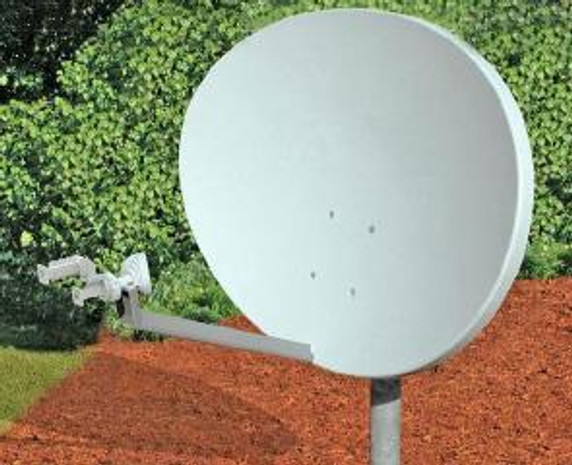

Global Skyware 84cm Ku Band Receiver Transmitter (RxTx) Elliptical Antenna System

The 84cm Rx/Tx Ku Band Elliptical Antenna is a rugged commercial grade product suitable for the most demanding applications.

The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which strengthens the antenna and sustains the parabolic shape necessary for transmit performance.

The heavy-gauge galvanized steel Az/El/Skew mount provides rigid sup-port to the reflector. The mount secures the antenna to any 60 mm (2.38”) O.D. mast and prevents slippage in high winds. This mount allows for precise alignment of the elliptical reflector to the geostationary arc.

Features:

• ISO 9001:2008 Certificate of Registration
• One-piece precision elliptical offset thermoset-molded reflector.
• Single bolt fine elevation adjustment.
• Extruded aluminum feed support arm.
• Pre-assembled Az/El/Skew mount for optimum alignment capability.
• Plated hardware for maximum corrosion resistance.
• Includes Rx/Tx feed assembly.
• Available with Co-Pol or Cross-Pol feed.
• All materials comply with EU Directive No. 2002/95/EC (RoHS).
• Designed for typical 1W and 2W Ku-band Block-Up Converters (BUCs) 2 kg or 4.5 lb or max. weight for RF electronics (BUC and Low Noise Block (LNB))

84CM TYPE 845 CL I ELLIPTICAL Ku RxO SP FEED
