Global Invacom
Global Skyware 2.4m Ka Band Receiver Transmitter (RxTx) Antenna System
Product Code:
VS-2415614MC
Availability:
YES
Weight:
260.50 KGS
Width:
500.00
(cm)
Height:
298.00
(cm)
Depth:
135.00
(cm)
$18,876.00
Description

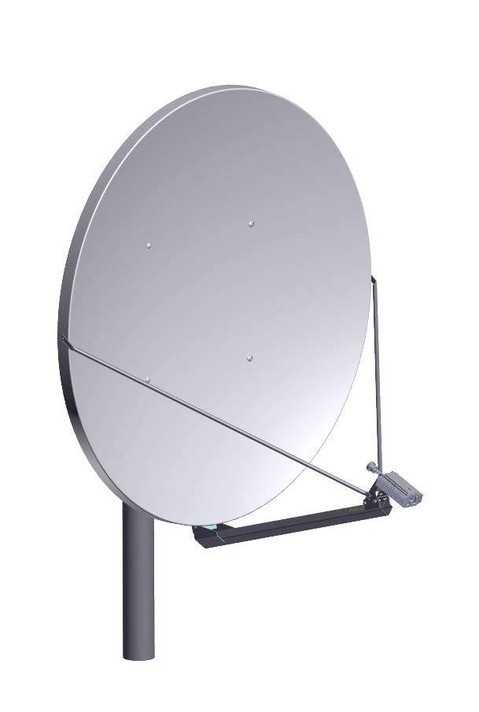

This is a 2.4m precision composite reflector suitable for Ka band receiving and transmitting.
It has an ISO 9001:2008 Certificate of Registration.
| Parameter | Specification |
| Effective Aperture | 2.4m (96in) |
| Operating Frequency | |
| Tx | 28.00-30.00 GHz |
| Rx | 18.10-20.20 GHz |
| Polarization | Circular or Linear |
| Gain (±0.2 dB) | |
| Tx | 54.5 dBi @ 30.0 GHz |
| Rx | 51.6 dBi @ 20.2 GHz |
| 3dB Beamwidth | |
| Tx | 0.28° @ 30.0 GHz |
| Rx | 0.40° @ 20.2 GHz |
| Sidelobe Envelope (Tx, Co-Pol dB) | |
| Mainbeam < Θ < 20° | 29 - 25 Log Θ dB |
| 20° < Θ 26.3° | -3.5 dB |
| 26.3° < Θ < 48° | 32-25 Log Θ dB |
| 48° < Θ < 180° | -10 dB |
| Antenna Cross-Polarization (within 1 dB b/w) | |
| Tx | 25 dB |
| Rx | 22 dB |
| Antenna Noise Temperature 30° Elev. | 57° K |
| VSWR | 1.2:1 |
| Isolation (Port to Port) | |
| Tx | 90 dB |
| Rx | 75 dB |
| Feed Interface | |
| Tx | WR28 Flat Flange |
| Rx | WR42 Flat Flange |
| Mechanical Performance | |
| Reflector Material | Glass Fiber Reinforced Polyester |
| Antenna Optics | One-Piece Offset Feed Prime Focus |
| Mount Type | Elevation over Azimuth |
| Maximum Radio Weight | 5 lbs at feed & up to 25lbs on Boom Arm |
| Elevation Adjustment Range | 10° - 90° Continuous Fine Adjustment |
| Azimuth Adjustment Range | 360° Continuous, ±3° Fine Adjustment |
| Mast Pipe Size | 5” or 5.56” (127mm or 141mm) diam. |
| Wind Loading | |
| Operational | 72 km/h (45 mph) |
| Survival | 241 km/h (150 mph) |
| Temperature | -50°C to +80°C |
| Humidity | 0 to 100% (Condensing) |
| Atmosphere | Standard Hardware Meets 500 Hour Salt Spray Test Requirements (ASTM B-117) |
| Solar Radiation | 360 BTU/h/ft2 |
| Shock and Vibration | As Encountered During Shipping and Handling |
