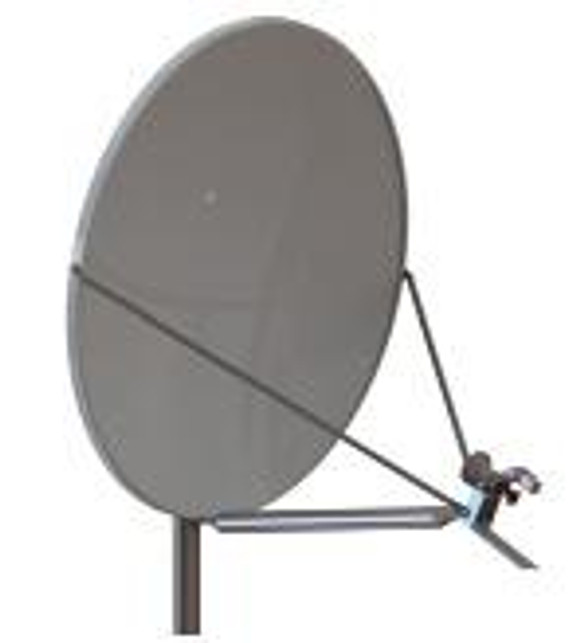

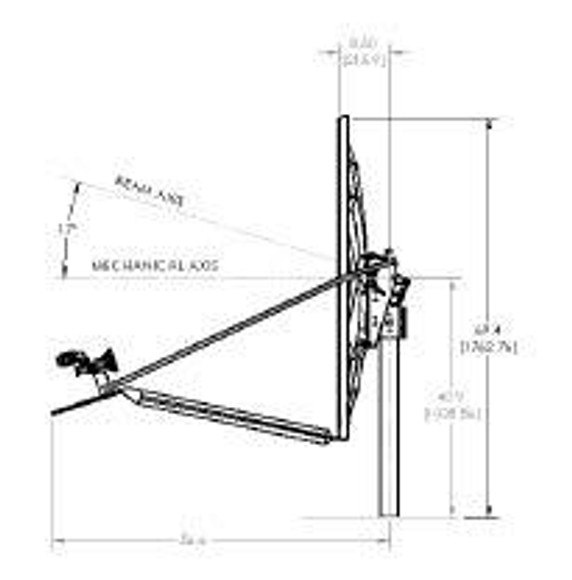

Global Skyware 1.2m Ku Band Receiver Transmitter (Rx/Tx) Offset Antenna System with XPC Feed

The 1.2m Class II RxTx offset antenna with XPC feed is a rugged commercial grade product suitable for the most demanding applications.

The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which strengthens the antenna and helps to sustain the necessary shape.

Features:

• All materials comply with EU directive No. 2002/95/EC (RoHS).
• Long focal length optics for low cross-pol performance.
• Fine azimuth and elevation adjustments.
• Available with Ku-band co–pol or cross–pol feeds.
• Galvanized 19 mm (.75”) O.D. side feed support legs and 51 mm (2”) O.D. lower feed support.
• Plated hardware for maximum corrosion resistance.
• Class II system designed for typical 2 W and 4 W Ku-band Block Up-Converters (BUCs).

RF Performance
Operating Frequency
Tx . . . . . . . . . . . . . . . . . . . . . . . . . . .13.75 - 14.50 GHz
Rx . . . . . . . . . . . . . . . . . . . . . . . . . . 10.70 - 12.75 GHz
Polarization. . . . . . . . . . . . . . . . . . Linear, Orthogonal
Gain (±0.5 dB)
Tx . . . . . . . . . . . . . . . . . . . . . . . . .43.3 dBi @ 14.3 GHz
Rx . . . . . . . . . . . . . . . . . . . . . . . . 41.8 dBi @ 12.0 GHz
3 dB Beamwidth
Tx . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.2° @ 14.3 GHz
Rx . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5° @ 12.0 GHz
Sidelobe Envelope (Tx, Co-Pol dBi)
1.5° < q < 20°. . . . . . . . . . . . . . . . . . . . 29-25 log q dBi
20° < q < 26.3°. . . . . . . . . . . . . . . . . . . . . . . . . .-3.5 dBi
26.3° < q < 48°. . . . . . . . . . . . . . . . . . . .32-25 log q dBi
48° < q < 180°. . . . . . . . . . . . . . . . . . . . . . . . . . .-10 dBi
Antenna Cross-Polarization
. . . . . . . . . . . . . . . . . . . . . . . . >30 dB in 1 dB Contour
Antenna Noise Temperature
10° EL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45°K
20° EL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31°K
30° EL. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24°K

VSWR
Tx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3:1
Rx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5:1
Isolation (Port to Port)
Tx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .80db
Rx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35db

Feed Interface
Tx . . . . . . . . . . . . . . . . . . . . . . . . . . .WR75 Flat Flange
Rx . . . . . . . . . . . . . . . . . . . . . . . . . . .WR75 Flat Flange

Mechanical Performance
Reflector Material
. . . . . . . . . . . . . . . . .Glass Fiber Reinforced Polyester
Antenna Optics
. . . . . . . . . . . . . . One-Piece Offset Feed Prime Focus
Mount Type. . . . . . . . . . . . . . Elevation over Azimuth
Elevation Adjustment Range
. . . . . . . . . . . . . 7° - 84° Continuous Fine Adjustment
Azimuth Adjustment Range
. . . . . . . . . . 360° Continuous, ± 20° Fine Adjustment
Mast Pipe Interface
. . . . . . . . . . . 73 - 76 mm (2.88 in - 3.00 in) Diameter
Enviromental Performance
Wind Loading
Operational. . . . . . . . . . . . . . . . . . .50 mph (80 km/h)
Survival . . . . . . . . . . . . . . . . . . . 125 mph (200 km/h)
Temperature . . . . . . . . . . . . . . . . . . . . -50°C to +80°C
Humidity. . . . . . . . . . . . . . . . 0 to 100% (Condensing)
Atmosphere. . . . . . . . . .Standard Hardware 500 Hrs
SST Requirements (ASTM B-117)
Solar Radiation . . . . . . . . . . . . . . . . . . 360 BTU/h/ ft2
Shock and Vibration. . . . . . . .As Encountered during
