Global Konet Ku-Band IOT GU24 GU220-PAA-22-K Terminal

The GU24 IOT terminal is increasingly being used for a variety of purposes in LEO/MEO/GEO multi-orbit. Drone/Unmanned vessel/Mobility application

One Box Solution

The GU24 ESA antenna features an EIRP of 22dBW and a G/T of -1.5dB/K, which is usable for geostationary satellites (GEO). It proves that OTM services are possible while on the move, and is used on SUVs and ships.

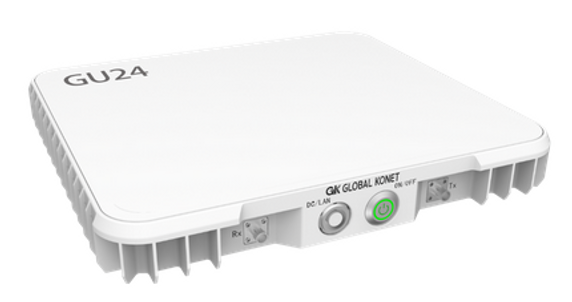

GU24 IOT OTM Terminal

Its compact size makes it possible to use GEO and LEO satellites, allowing for satellite phone and Internet services to be provided on ships.

The GU24 terminal integrates GPS navigation (built-in or external) and IMU directly, enabling Internet service while in motion, such as in a vehicle or ship.

The BUC/LNB is embedded in the chip, reducing the size, and there is no motor, so there is no mechanical failure, and the user does not need to Satellite pointing.

The Importance of GU24 Terminals in Reducing Marine Communication Costs

Now you don’t need an expensive satellite phone costing tens of thousands of dollars for satellite phone or internet.

With GU24, you can use internet service and phone service at the same time, and you can find your location in real time with the Navigator service linked to GPS.

We hope you experience cheap, convenient, and fast internet service from anywhere in the world.

Drone/ Unmanned Vessel/ Mobility Application
One Box Solution

Manufacturing through a modular design makes it very easy to customize. This allows other products, including drones, to use their antenna solutions.

The IOT interface can reflect customer requirements, and the modem can be built-in.

Antenna Frequency Spec

• Model: GA24 IOT (GU1064)
• Satellite Band: GEO/MEO/LEO Extend Ku Band
• Antenna Type: Two-way active phased array antenna
• Frequency Range:
  • TX: 13.70 – 14.50GHz
  • RX: 10.70 – 12.70GHz

Ant Transmit/Receive Performance

• G/T: >= -1.5dB/K@90°@11.7GHz@40K
• EIRP: 22dBW@90%@14.1 GHz
• Spreading: Spread spectrum support
• Vehicle Service: Open AMIP Support
• Marine Service: Open AMIP Support

Ant Electronic Beam Tracking

• Scanning Range: Azimuth: 0° – 360°, Elevation 20° – 90°
• Polarization: Linear Polarization, LHCP/RHCP
• Pol Switching Time: <= 0.5ms
• New Beam Switching Time: <= 30.3ms

Ant environmental performance

• Rated Voltage: 24V@≤35W
• Weight: ≤2.5Kg
• Dimension: 26 x 23 x 3cm
• Operation Temperature: -40°C – +55°C
• Waterproof Rating: IP66
